Home / Products / Mixer Equipment / Power(granules) Mixer / YYH One-Dimensional Motion Mixer

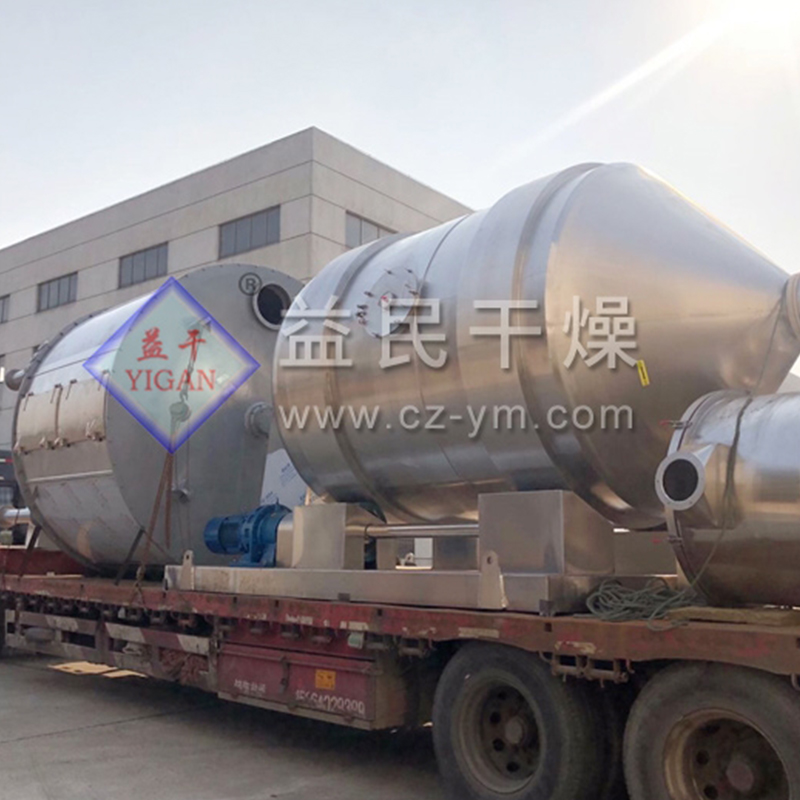

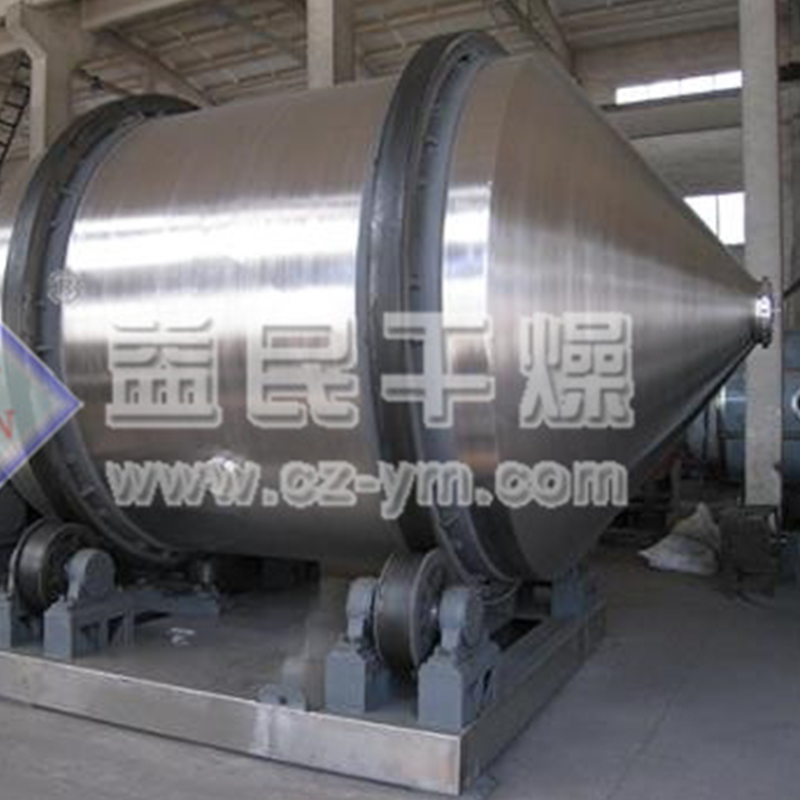

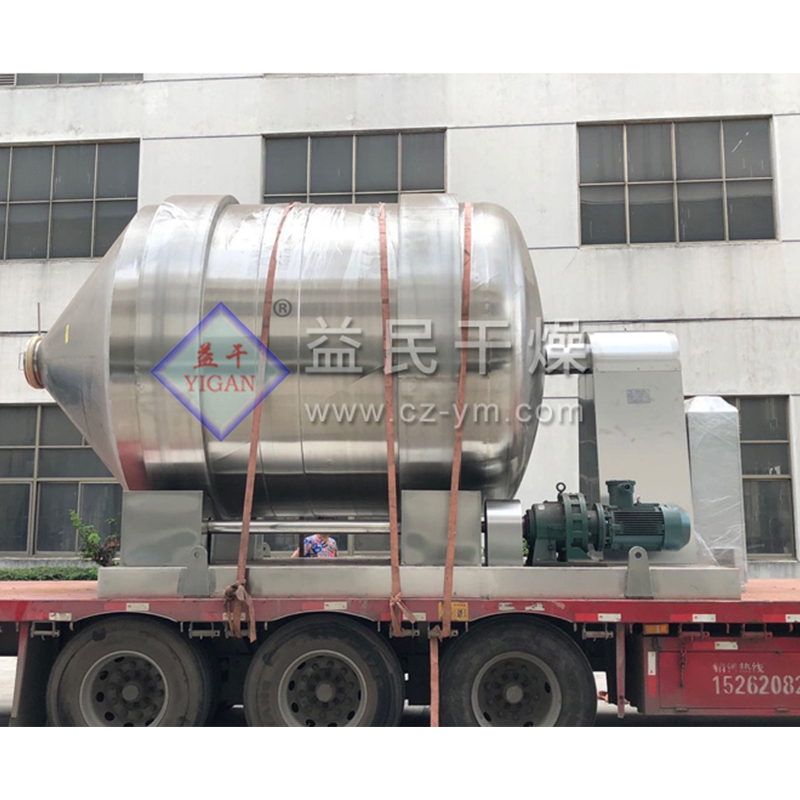

YYH One-Dimensional Motion Mixer

The YYH One-Dimensional Motion Mixer, is a cutting-edge powder mixing solution meticulously crafted by our company to meet the stringent standards of Good Manufacturing Practice (GMP). Engineered with simplicity and efficiency in mind, this mixer boasts a straightforward design that facilitates easy cleaning, ensuring hygiene in production environments. Versatile across a multitude of industries including pharmaceuticals, chemicals, food, dyes, feeds, fertilizers, pesticides, and more, the YYH Mixer stands out for its exceptional performance in blending powders and granules. Its innovative one-dimensional motion technology sets it apart, as the charging cylinder revolves around a central axis while materials inside undergo intricate three-dimensional movement, resulting in unparalleled mixing accuracy comparable to traditional two and three-dimensional motion mixers.

  • YYH One-Dimensional Motion Mixer
  • YYH One-Dimensional Motion Mixer
  • YYH One-Dimensional Motion Mixer
  • YYH One-Dimensional Motion Mixer

Item Barrel volume (L) Maximum Charging Volume(L) Maximum Loading Capacity(Kg/batch) Rotation speed(r/min) Motor power(Kw) Dimensions
A×B×C×D(mm)
Total Weight (Kg)
YYH-50 50 25 13 0-18 0.55 920×440×540×350 250
YYH-150 150 75 37 0-16 0.75 1140×610×900×445 320
YYH-300 300 150 75 0-14 1.1 1340×760×990×520 410
YYH-600 600 300 150 0-13 1.5 1615×960×1100×630 490
YYH-800 800 400 200 0-12 2.2 1730×1070×1200×700 560
YYH-1000 1000 500 250 0-12 2.2 1900×1120×1300×710 740
YYH-1500 1500 750 375 0-12 3 2050×1300×1480×830 850
YYH-2000 2000 1000 500 0-10 4 2280×1420×1620×910 1050
YYH-3000 3000 1500 750 0-10 5.5 2505×1620×1830×1020 1380
YYH-4000 4000 2000 1000 0-8 5.5 3000×1800×2200×1300 1650
YYH-6000 6000 3000 1500 0-6 7.5 3400×2200×2500×1450 2300
YYH-8000 8000 4000 2000 0-6 11 3677×2300×2850×1630 3500
YYH-10000 10000 5000 2500 0-6 11 3800×2500×2950×1680 3800
YYH-12000 12000 6000 3000 0-6 15 4600×2700×3050×1700 4500
YYH-15000 15000 7500 3750 0-5 18.5 4730×2900×3100×1725 6000
YYH-20000 20000 10000 5000 0-5 22 6000×3200×3500×1920 8000

Who Are We?

Changzhou Yimin Drying Equipment Co., Ltd. is China YYH One-Dimensional Motion Mixer suppliers and OEM/ODM YYH One-Dimensional Motion Mixer company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.

At present, the company has more than 180 sets of processing equipment and strong technical force. It produces more than 2,000 sets of various drying, mixing, granulating, crushing, dust removal, powder screening and other equipment annually. The products have developed into eight series with more than 300 specifications and varieties, which are widely used in pharmaceutical, chemical, food, feed, mining, agricultural and sideline products, electronics, light industry and other industries. The products are distributed throughout the country and exported to the United States, Japan, Russia, Hong Kong, Taiwan and other places.

The factory also has a large test workshop with a full range of prototypes. Customers are welcome to bring materials for testing and ordering.
