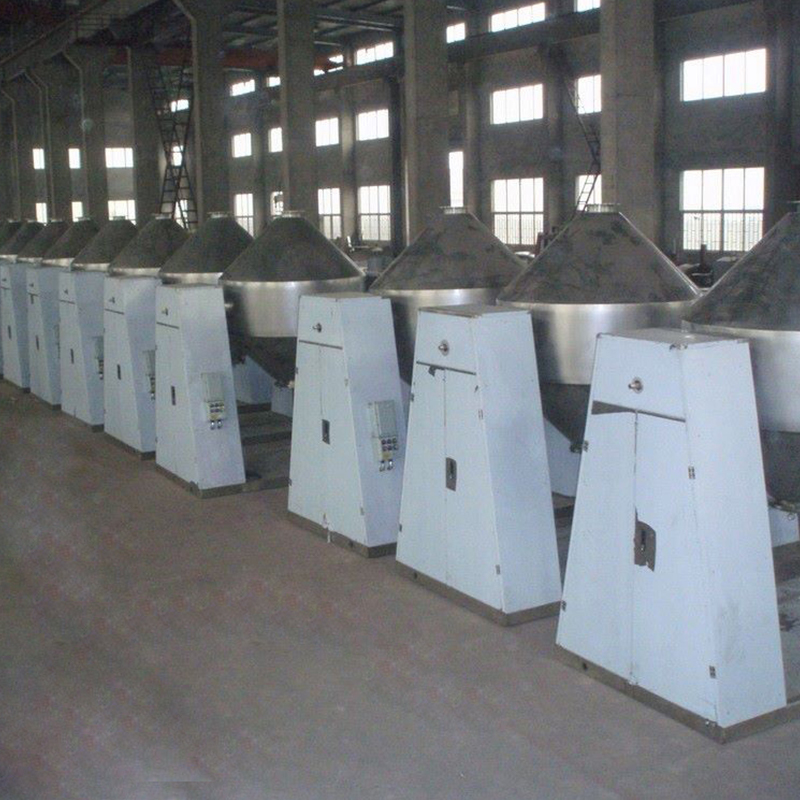

SZG Double Cone Rotary Vacuum Dryer

SZG Double Cone Rotary Vacuum Dryer is an advanced industrial equipment designed for the pharmaceutical, chemical, and food industries. This dryer employs a unique double cone design that allows for efficient drying of sensitive materials under vacuum conditions, ensuring minimal heat exposure and preserving product integrity. With its sterile design and precise temperature control capabilities, the SZG Dryer provides a reliable solution for drying heat-sensitive materials, reducing drying times, and maintaining high product quality standards.

  • SZG Double Cone Rotary Vacuum Dryer
  • SZG Double Cone Rotary Vacuum Dryer
  • SZG Double Cone Rotary Vacuum Dryer

Model SZG100 SZG350 SZG500 SZG-7500 SZG1000 SZG1500 SZG2000 SZG3500 SZG5000
Volume (litre) 100L 350L 500L 750 1000L 1500L 2000L 3500 5000
Charging volume (L) 50 175 250 375 500 750 1000 1750 2500
Loading weight(kg) 40 120 200 300 400 600 800 1000 1800
Heating area(m2) 1.16 1.5 2 2.63 3.5 4.61 5.58 7.5 13.8
Rotating speed(rpm) 3~13
Motor power 0.75 1.1 1.5 2.2 3 4 5.5 7.5 15
Rotating height 1750 2100 2250 2490 2800 2940 2990 3490 4200
Design pressure inside the tank:    ---0.1~0.15Mpa
Design pressure inside the jacket:     0.3Mpr
Total weight (Kg) 650 900 1200 1450 1970 2280 2500 2700 2900

Who Are We?

Changzhou Yimin Drying Equipment Co., Ltd. is China SZG Double Cone Rotary Vacuum Dryer suppliers and OEM/ODM SZG Double Cone Rotary Vacuum Dryer company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.

At present, the company has more than 180 sets of processing equipment and strong technical force. It produces more than 2,000 sets of various drying, mixing, granulating, crushing, dust removal, powder screening and other equipment annually. The products have developed into eight series with more than 300 specifications and varieties, which are widely used in pharmaceutical, chemical, food, feed, mining, agricultural and sideline products, electronics, light industry and other industries. The products are distributed throughout the country and exported to the United States, Japan, Russia, Hong Kong, Taiwan and other places.

The factory also has a large test workshop with a full range of prototypes. Customers are welcome to bring materials for testing and ordering.
