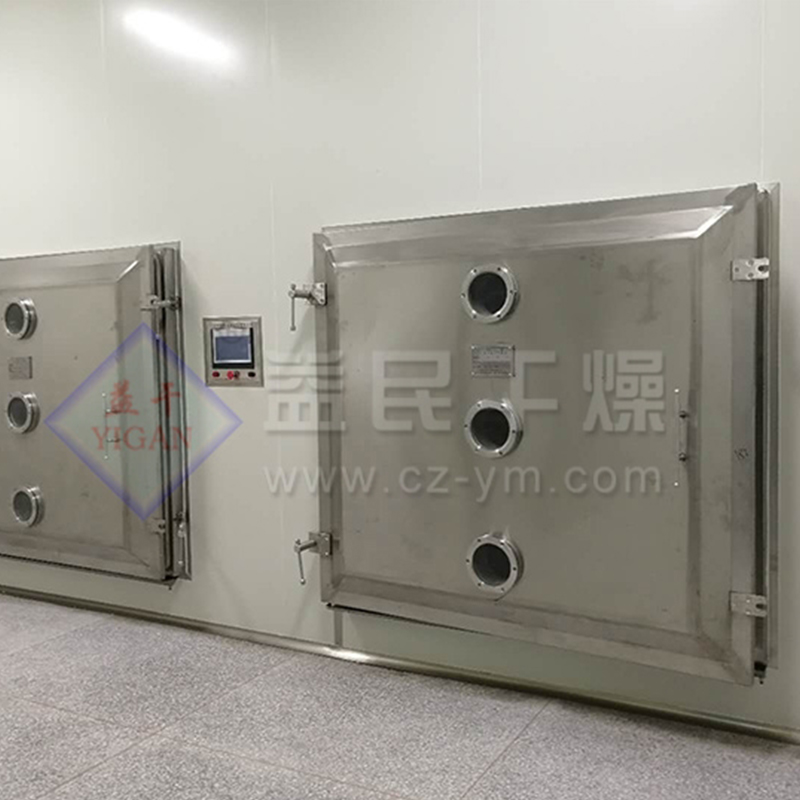

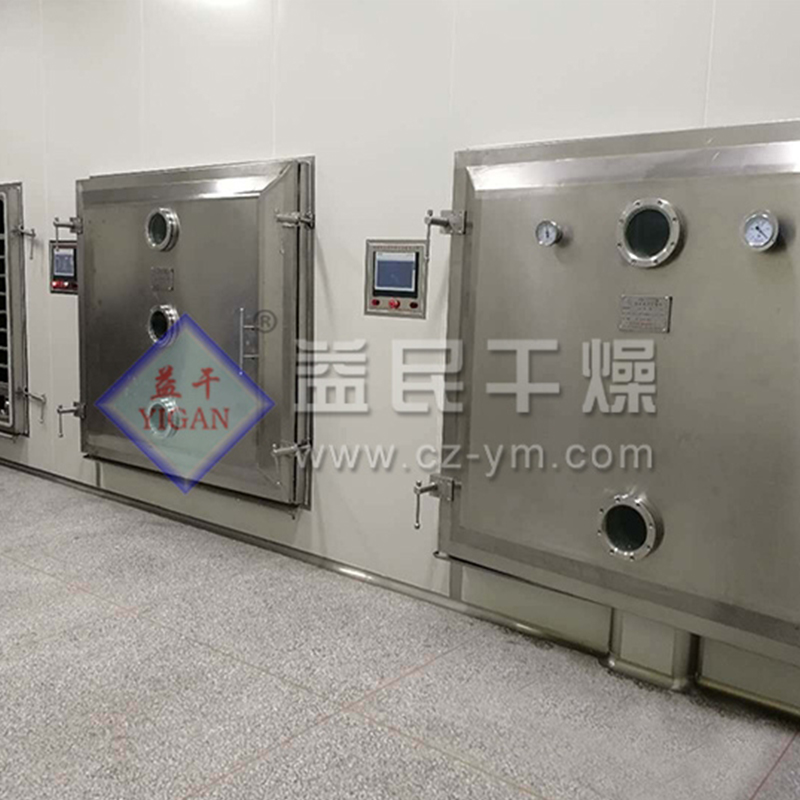

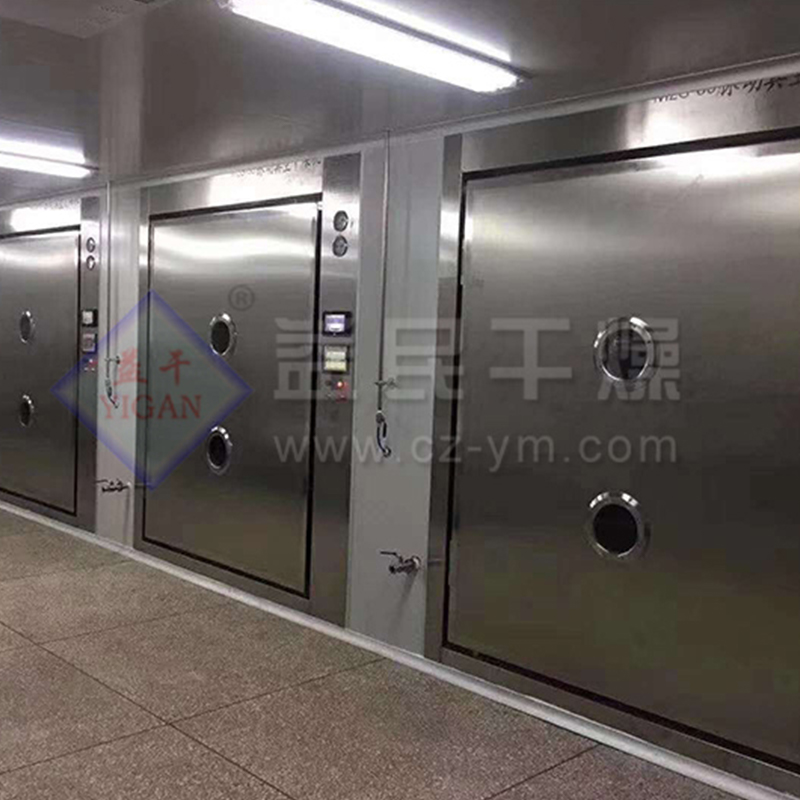

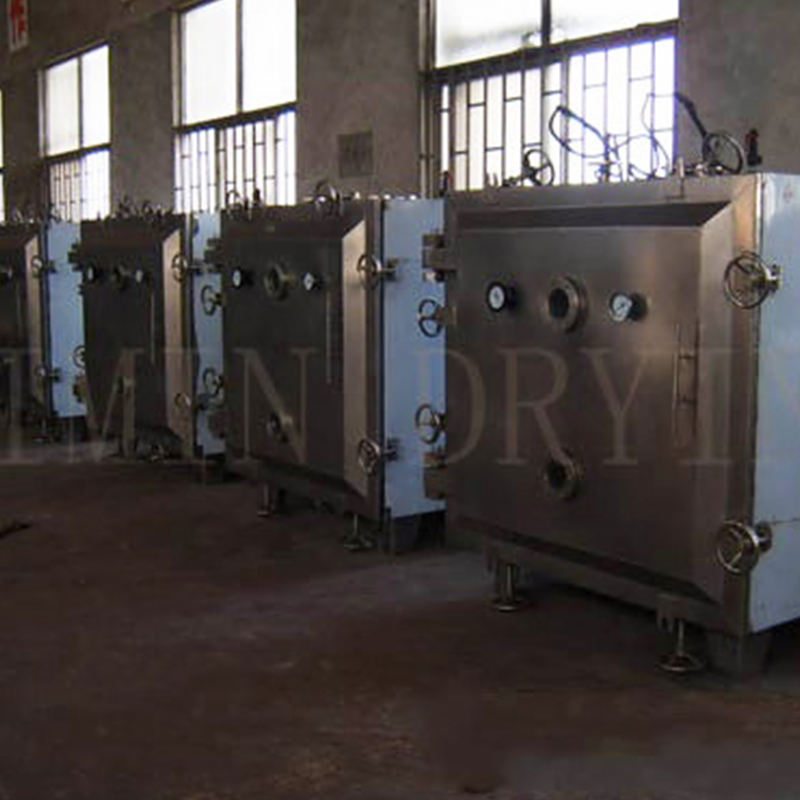

FZG Square Vacuum Tray Dryer

The FZG Square Chamber Vacuum Dryer is an advanced industrial drying system designed for businesses operating in pharmaceuticals, chemicals, food processing, and other related sectors. This dryer employs a square chamber configuration with heat transfer capabilities, ensuring efficient and uniform drying of materials. Its vacuum technology helps reduce drying times and preserve product quality by minimizing oxidation and heat degradation. Equipped with precise temperature and pressure controls, the FZG Square Chamber Vacuum Dryer offers versatility and reliability in drying a wide range of substances.

  • FZG Square Vacuum Tray Dryer
  • FZG Square Vacuum Tray Dryer
  • FZG Square Vacuum Tray Dryer
  • FZG Square Vacuum Tray Dryer
  • FZG Square Vacuum Tray Dryer
  • FZG Square Vacuum Tray Dryer
  • FZG Square Vacuum Tray Dryer

Model FZG-10 FZG-15 FZG-20

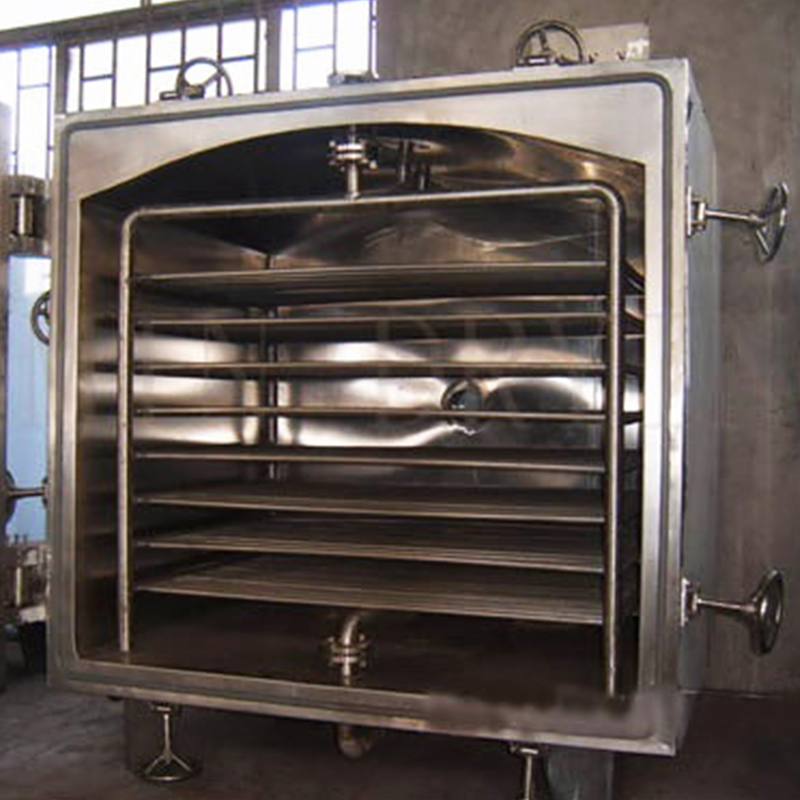

Layers of baking support 5 8 12
interval ( mm ) 122 122 122

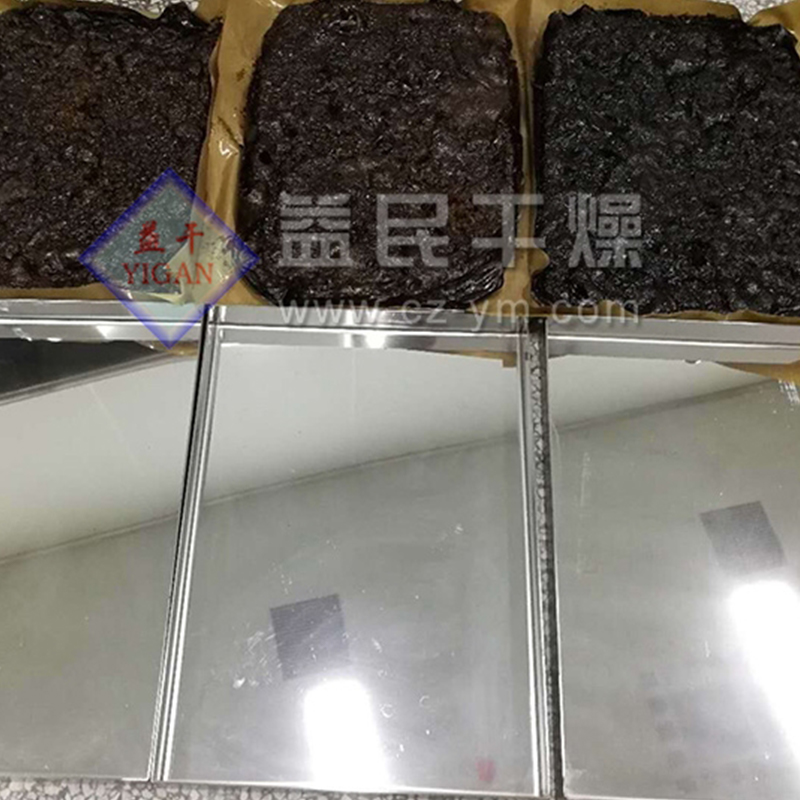

Size of baking tray ( mm ) 460×640×45 460×640×45 460×640×45
Quantity of baking tray 20 32 48
Working pressure inside the pipe of baking support ( MPa ) ≤0.784 ≤0.784 ≤0.784
operation temperature of baking support ( ℃ ) 35-150 35-150 35-150
Degree of vacuum inside the chamber when operation in idle ( MPa ) -0.1 -0.1 0.1
Under the condition of -O. 1Mpa and 110 ℃ , evaporation rate of water (kg/m2 ·hr) 7.2 7.2 7.2
When condenser is used, Model, and power of vacuum pump (kw) 2X-70A 5.5KW 2X-70A 5.5KW 2X-90A 7.5KW
When condenser is not used, Model, and power of vacuum pump (kw) SZ-2 4KW SZ-2 4KW SZ-2 5.5KW
Weight of drying chamber ( kg ) 1400 2100 3200
Inter size of drying chamber ( mm ) 1500×1060×1220 1500×1400 × 1220 1500×1800 × 1220
Outer size of drying chamber ( mm ) 1924×1720 ×1513 1513×1924 ×2060 1924×2500 × 1513
