FG Vertical Type Fluid Bed Dryer

The FG Vertical Type Fluid Bed Dryer stands as a pinnacle solution for diverse industries including medicine, food, and chemicals, offering impeccable drying capabilities for both powder and granular materials. Its design prioritizes hygiene and safety, featuring a seamless construction devoid of dead ends, ensuring thorough cleaning and eliminating any risk of cross-contamination. The incorporation of mixers and negative pressure feeding systems can be tailored to specific requirements, enhancing its versatility. Noteworthy features include fluidized drying for rapid heat and mass transfer, operation within a closed negative pressure environment to prevent airborne dust, and the utilization of anti-static filtering materials for secure operations. Moreover, compared to its counterparts like the GFG, this dryer boasts a significantly larger fluidization space, augmenting its efficiency and productivity.

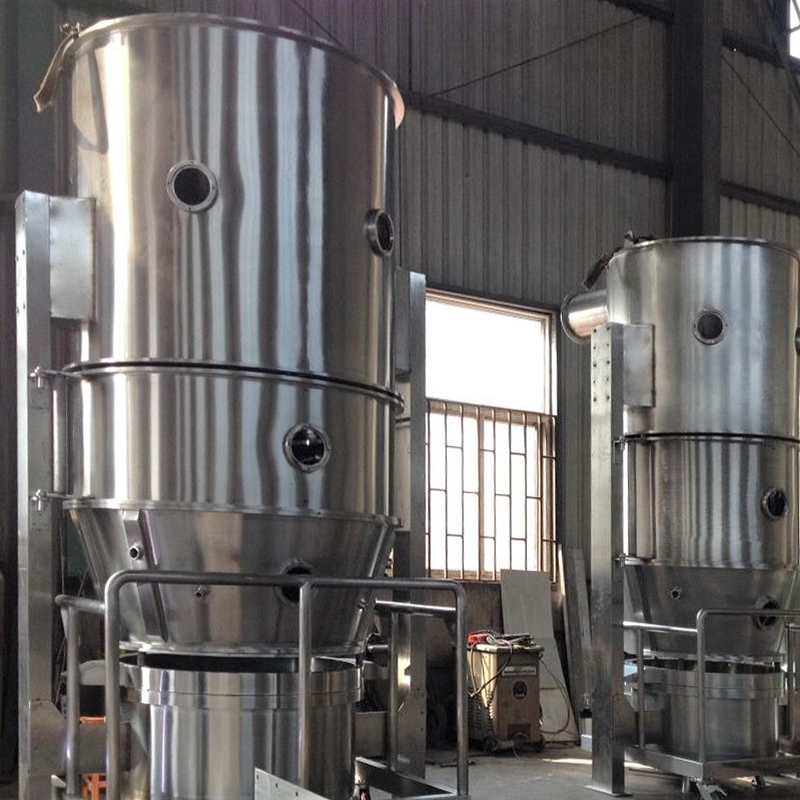

  • FG Vertical Type Fluid Bed Dryer

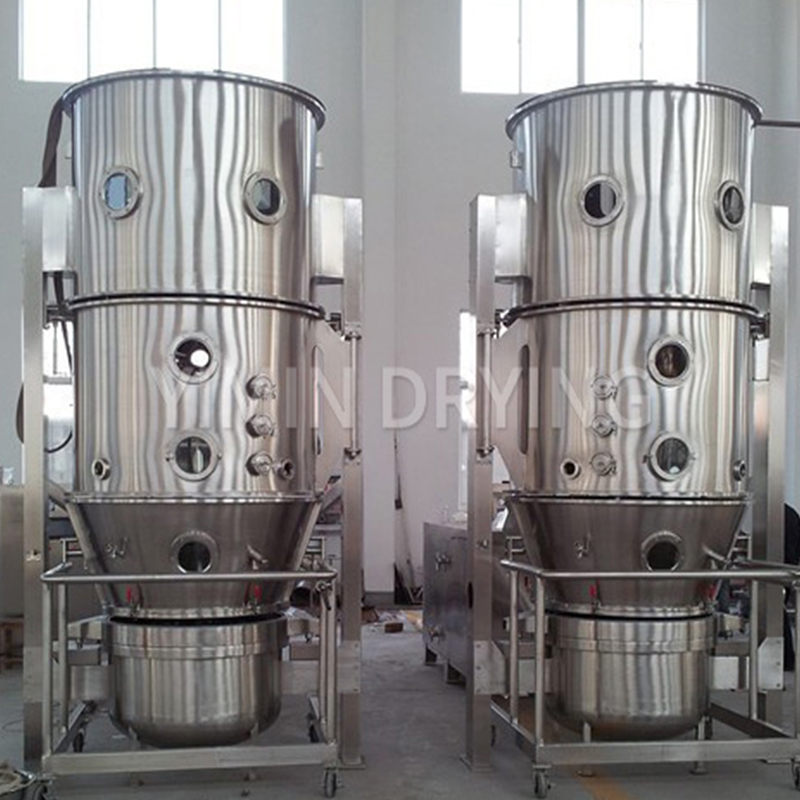

  • FG Vertical Type Fluid Bed Dryer

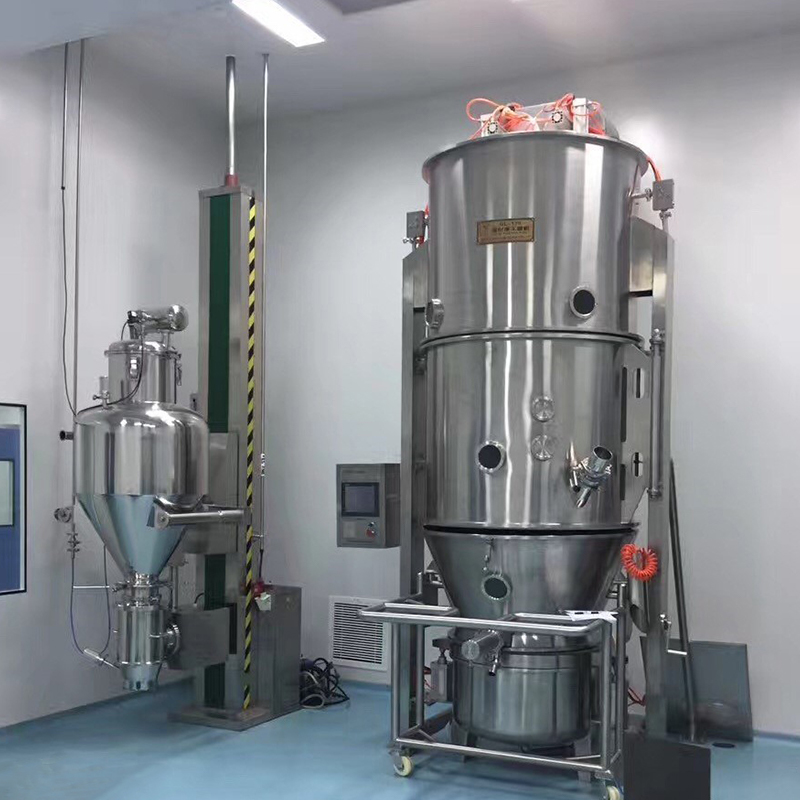

  • FG Vertical Type Fluid Bed Dryer
  • FG Vertical Type Fluid Bed Dryer

Model 5 30 60 120 200 300 500
Item unit
Raw material container diameter mm 400 700 1000 1200 1400 1600 1800
volume L 22 100 220 420 670 1000 1500
Capacity min kg 4 15 30 80 100 150 250
max kg/ 6 45 90 160 300 450 750
Steam consume kg/h 23 70 140 211 282 366 465
Amount of pressed air m3 /min 0.3 0.3 0.6 0.6 0.9 1.1 1.6
Power of fan kw 2.2 5.5 7.5 15 22 30 37
Temp normal 120adjusted automatic
Noise db <=75
Main machine length mm 1600 2300 3000 3100 3500 4000 4600
