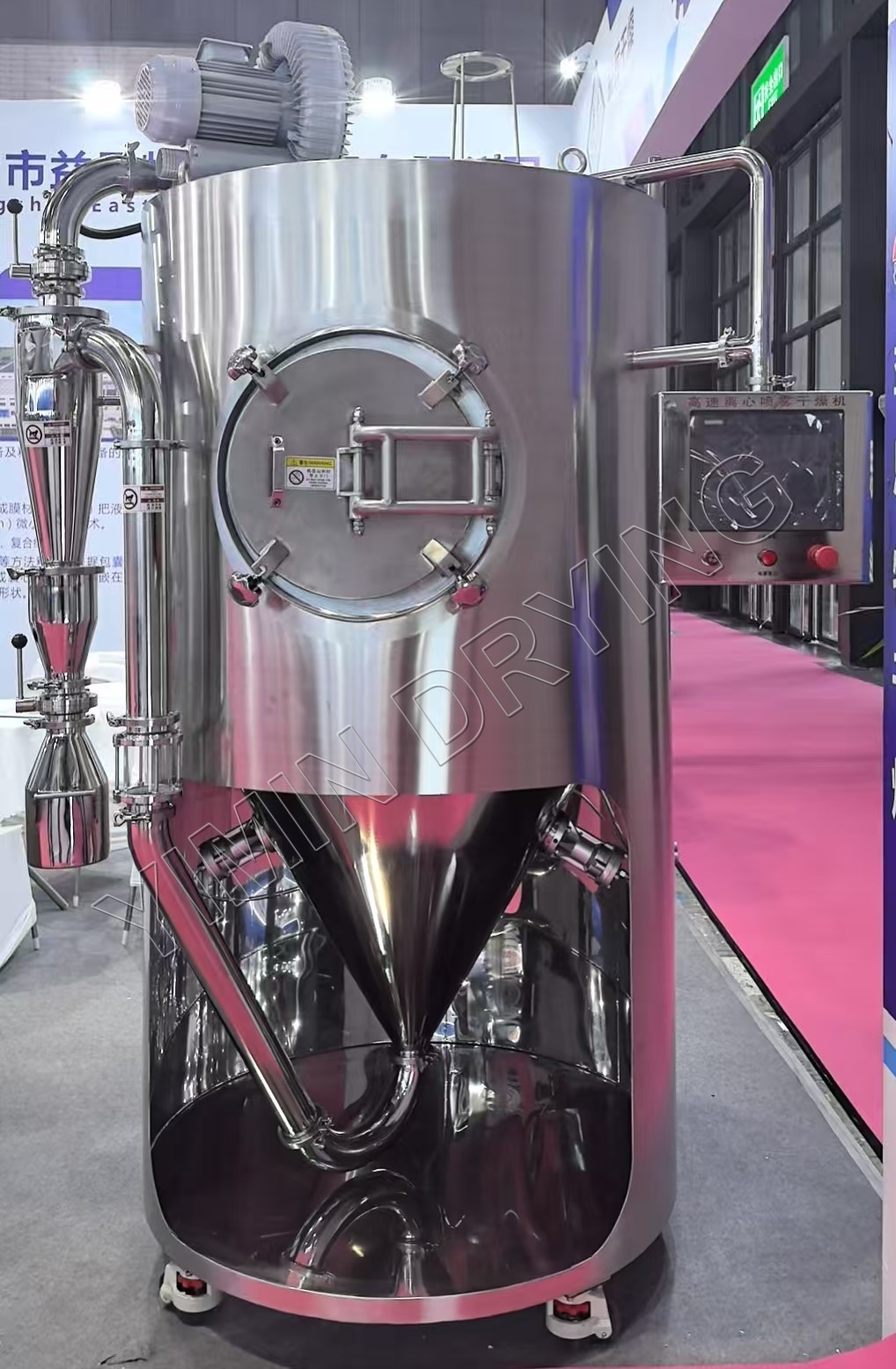

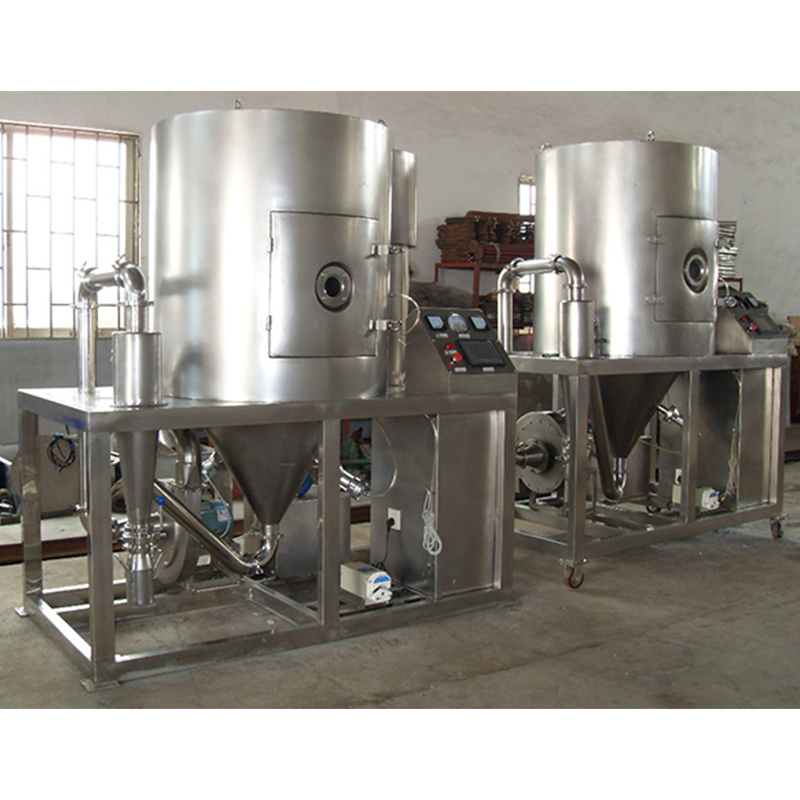

LPG Centrifugal Spray Dryer

LPG Centrifugal Spray Dryer offering unparalleled efficiency and versatility across a spectrum of sectors including food, pharmaceuticals, and chemicals. Operating on the principle of harnessing heated and filtered air, it delivers a precisely controlled environment within the drying chamber. Liquid materials are swiftly transformed into fine mist-like droplets via the high-speed centrifugal atomizer, facilitating rapid evaporation upon contact with the hot airflow. This method ensures swift drying times, ideal for heat-sensitive materials, without compromising on quality. Notably, its capabilities extend to highly viscous substances, thanks to its adept handling of such materials. Designed for reliability and eco-friendliness, it boasts a solvent-free process, minimizing environmental impact. With its high heat utilization efficiency and low operating costs, the LPG Centrifugal Spray Dryer emerges as a cornerstone solution for businesses seeking drying performance with minimal resource consumption.

  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer
  • LPG Centrifugal Spray Dryer

Specification LPG5 LPG25 LPG50 LPG100 LPG150 LPG200-3000
Inlet temperature ≤ 350°C
Outlet temperature 80-90°C
Evaporating rate (kg/h) 5 25 50 100 150 200-3000
Rotating speed(rpm) 25000 22000 21500 18000 18000 15000
Dia. of atomizing tray(mm) 50 120 120 120 150 180-340
Heat source Electricity Electricity Electricity+ steam, oil fuel, gas, or coal
Electrical-heating power 9 45 60 81 99 -------------
Dry powder Yield ≥ 95
Installation Size For reference A(mm) 1000 1290 1730 2500 2800 Decided according to actual condition
B(mm) 2100 3410 4245 5300 6000
C(mm) 2300 4260 4645 6000 6700
φ D(mm) 1060 1800 2133 2560 2860
E1(mm) 1050 1200 1640 2100 2180
E2(mm) 1050 1200 1640 2100 2180
F(mm) 750 1000 1250 1750 1970
G(mm) 530 1700 1750 1930 2080

Who Are We?

Changzhou Yimin Drying Equipment Co., Ltd. is China LPG Centrifugal Spray Dryer suppliers and OEM/ODM LPG Centrifugal Spray Dryer company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.

At present, the company has more than 180 sets of processing equipment and strong technical force. It produces more than 2,000 sets of various drying, mixing, granulating, crushing, dust removal, powder screening and other equipment annually. The products have developed into eight series with more than 300 specifications and varieties, which are widely used in pharmaceutical, chemical, food, feed, mining, agricultural and sideline products, electronics, light industry and other industries. The products are distributed throughout the country and exported to the United States, Japan, Russia, Hong Kong, Taiwan and other places.

The factory also has a large test workshop with a full range of prototypes. Customers are welcome to bring materials for testing and ordering.
