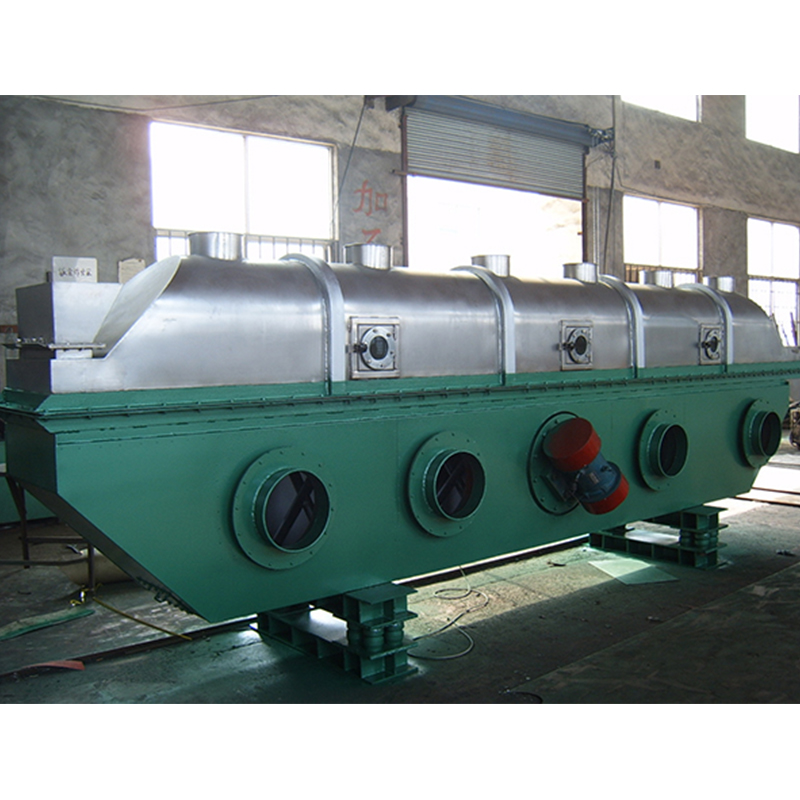

ZLG Vibrating Fluid Bed Dryer

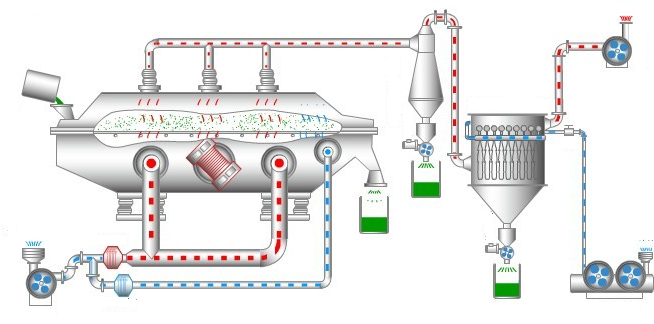

ZLG Vibrating Fluid Bed Dryer, its operational excellence lies in its sophisticated working principle: materials enter through the feed port and experience controlled horizontal movement propelled by vibration force. As hot air ascends through the fluidized bed, it engages in a precise heat exchange with the wet materials, to their drying. The separated wet air is then filtered through a cyclone separator before being discharged, while the dry materials exit from the discharge port. This dryer boasts a multitude of features designed to optimize performance and convenience. Driven by a vibration motor, it operates with minimal noise, ensuring a long lifespan and easy maintenance. Its high thermal efficiency surpasses conventional drying equipment by over 30%, owing to uniform temperature distribution and fluidization, thereby eliminating local overheating and dead spots. Notably, its layer thickness and movement parameters are adjustable within a broad range, offering exceptional versatility across applications. Moreover, its gentle treatment of materials minimizes surface damage, rendering it suitable for fragile particles and irregular shapes. Embracing a fully enclosed structure, it effectively mitigates cross-contamination risks, ensuring a pristine working environment conducive to continuous operation.

  • ZLG Vibrating Fluid Bed Dryer
  • ZLG Vibrating Fluid Bed Dryer
  • ZLG Vibrating Fluid Bed Dryer
  • ZLG Vibrating Fluid Bed Dryer

Model Area of fluidized-bedm2 Temperature of inlet air(℃) Temperature of outlet(℃) Capacity to vapor moisturekg/h Vibration motor
Model Power(kw)
ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2
ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2
ZLG7.5×6.0 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2
