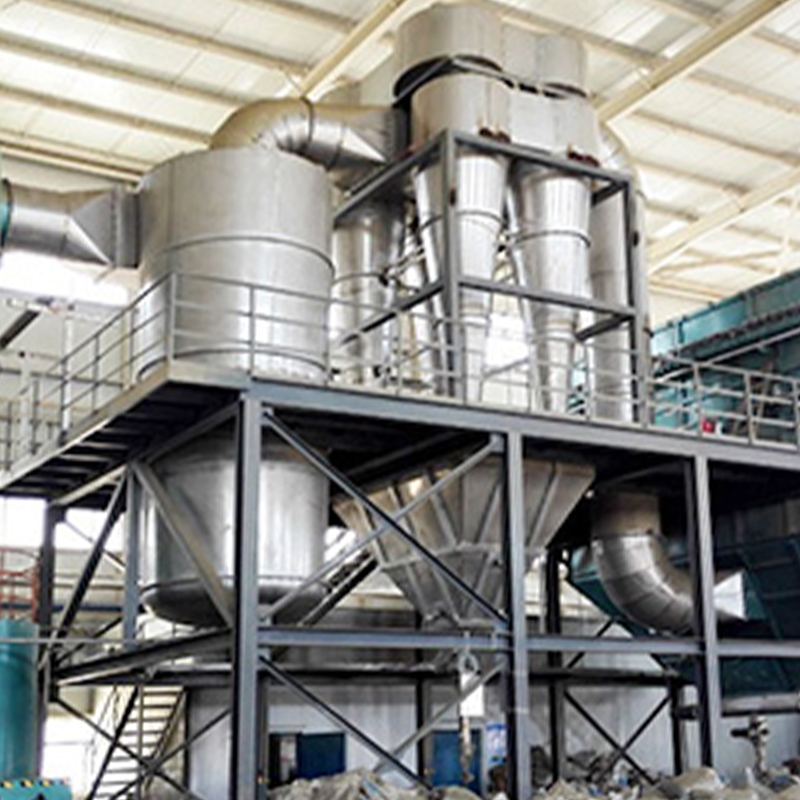

XSG High Efficiency Spin Flash Dryer

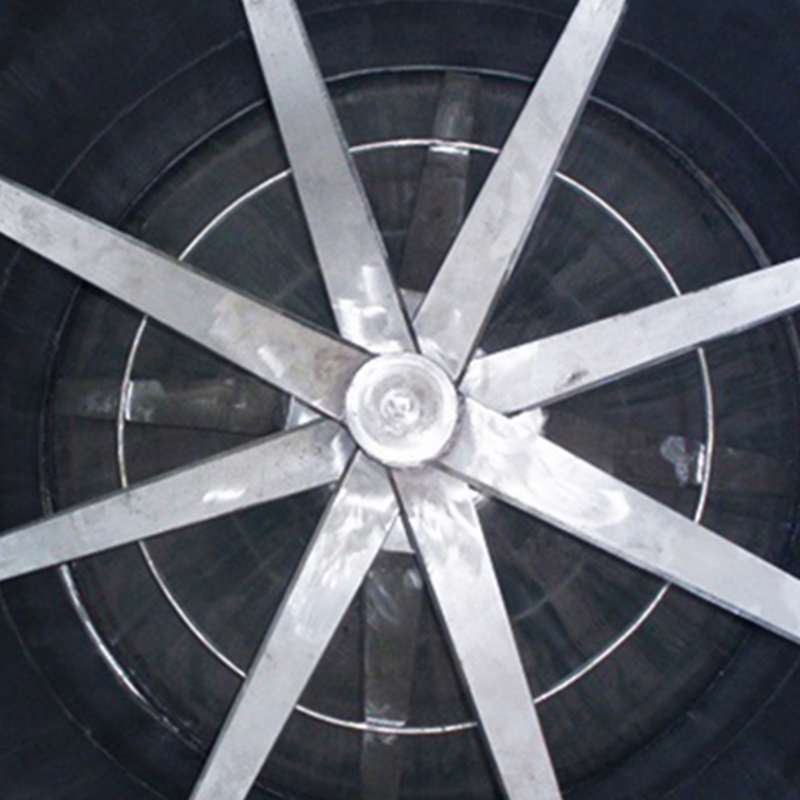

The XSG Spin Flash Dryer, part of our advanced drying equipment line, represents a culmination of cutting-edge technology and innovative design. Developed with a focus on efficiency and versatility, this dryer offers a seamless integration of drying, crushing, and screening processes within a single unit, eliminating environmental concerns associated with traditional methods. Its robust features include multiple feeding options ensuring continuous and stable operation, a specialized cooling system to maintain material integrity, and advanced sealing mechanisms for prolonged transmission part life. The inclusion of a classification ring and swirling blade allows for precise control over material fineness and moisture content, catering to diverse application needs such as achieving a final moisture content as low as ≤0.1% for materials like calcium carbonate. Additionally, the high air velocity and short material residence time within the drying chamber prevent material adhesion and preserve heat-sensitive substances, resulting in heightened production efficiency, compact equipment footprint, and scalable production capabilities.

  • XSG High Efficiency Spin Flash Dryer
  • XSG High Efficiency Spin Flash Dryer
  • XSG High Efficiency Spin Flash Dryer
  • XSG High Efficiency Spin Flash Dryer

Model XSG-2 XSG-4 XSG-6 XSG-8 XSG-10 XSG-12 XSG-16 XSG-20
ID of main machine(mm) 200 400 600 800 1000 1200 1600 2000
Air amount(m3 /h) 350-500 1150-2000 2450-4500 4450-7550 7000-12500 10000-18000 18000-30500 50000-78000
Evaporated moisture(kg/h) 45643 40-70 80-150 150-250 230-420 300-600 600-1000 1000-1500
Max equipped capacity(kw) 10 20 40 65 85 105 150 230
Max height(m) 4 4.8 5.8 6.4 7.1 7.8 8.5 10.1
Occupied area(m2 ) 15 20 28 35 40 52 80 150

Who Are We?

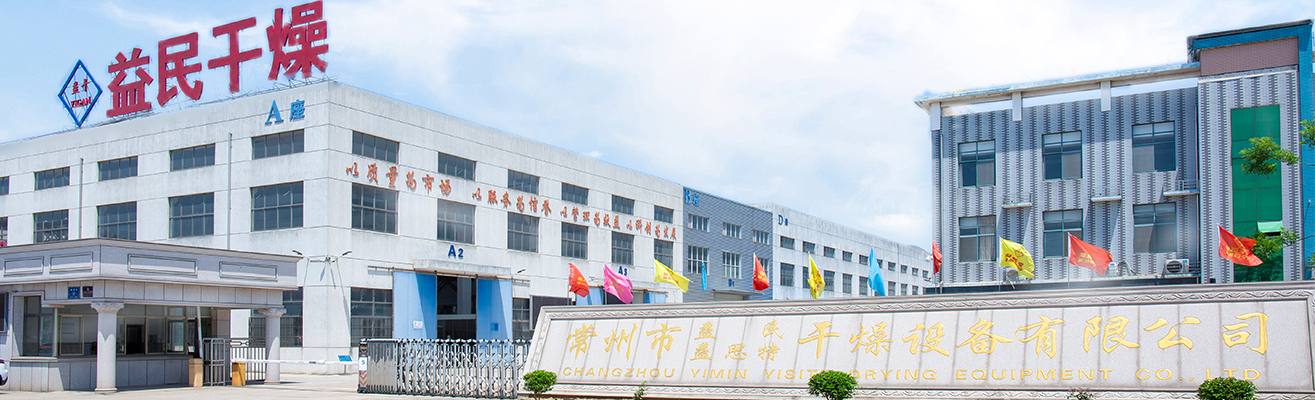

Changzhou Yimin Drying Equipment Co., Ltd. is China XSG High Efficiency Spin Flash Dryer suppliers and OEM/ODM XSG High Efficiency Spin Flash Dryer company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.
