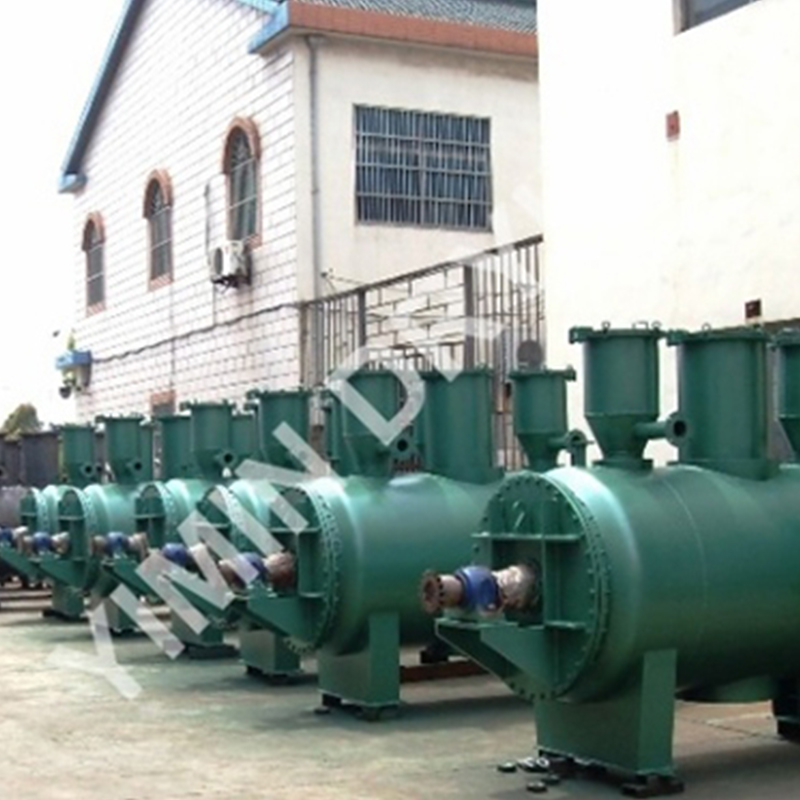

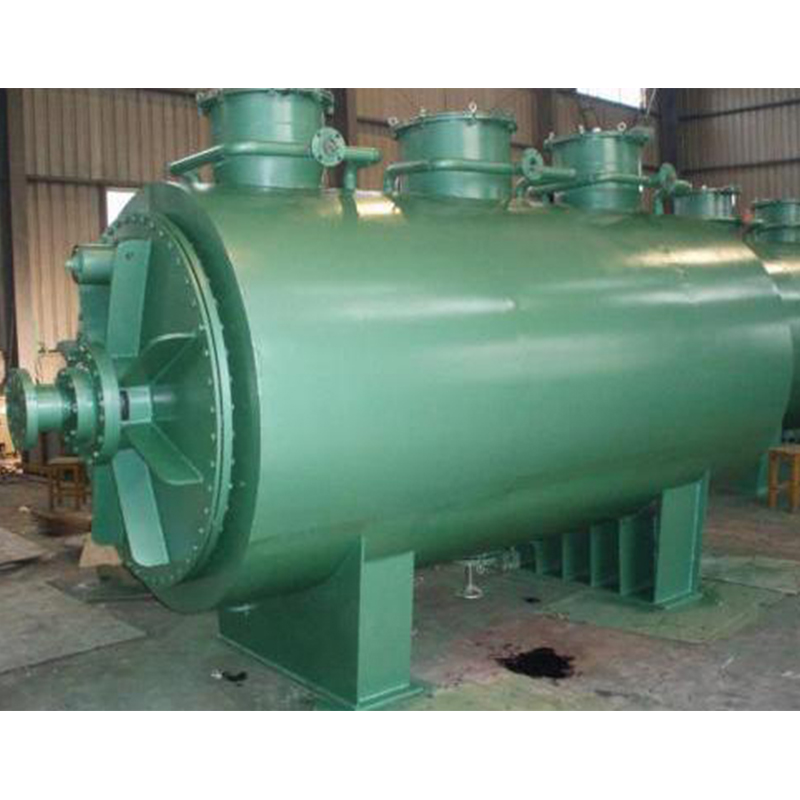

ZB Horizontal Harrow Vacuum Dryer

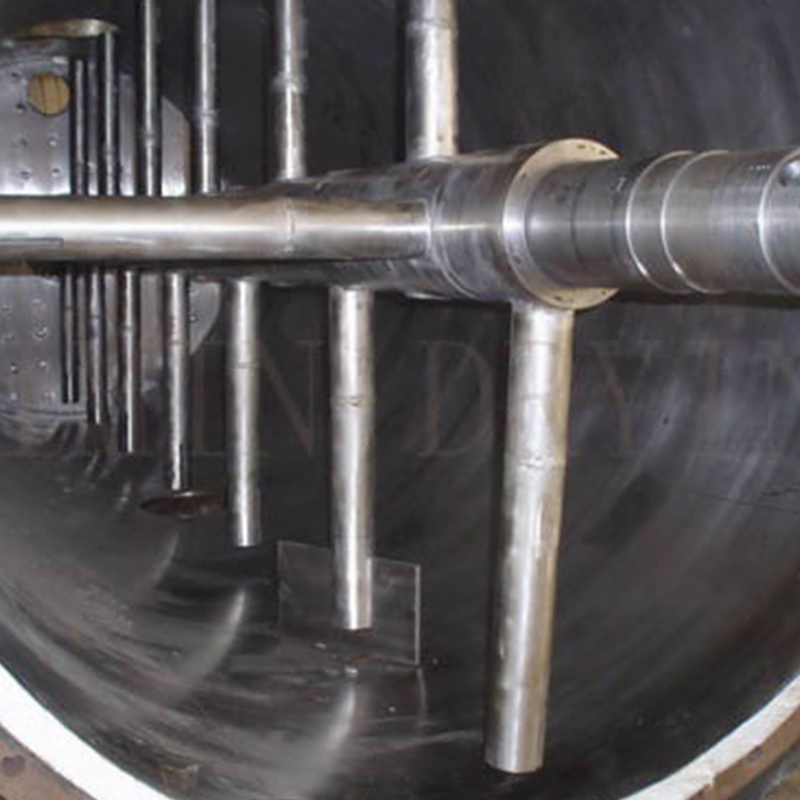

The ZB Horizontal Harrow Vacuum Dryer represents a pinnacle in advanced drying technology for diverse industrial applications. Employing a cutting-edge simultaneous heating mechanism utilizing both interlayer and internal stirring, it boasts a substantial heat transfer surface area, ensuring unparalleled thermal efficiency. Designed with meticulous attention to detail, this dryer facilitates a continuous circulation state within the barrel, enhancing material heating uniformity to the degree. Engineered to accommodate a wide range of substances including slurry, pasty, and viscous materials, it ensures smooth and efficient drying processes.

  • ZB Horizontal Harrow Vacuum Dryer
  • ZB Horizontal Harrow Vacuum Dryer
  • ZB Horizontal Harrow Vacuum Dryer
  • ZB Horizontal Harrow Vacuum Dryer

Item Model
Name unit ZB-500 ZB-750 ZB-1000 ZB-1500 ZB-2000 ZB-3000
Working volume L 300 450 600 900 1200 1800
Heating area m2 6 7.6 9.3 12.3 14.6 19.3
Stirring revolution rpm 6-30 stepless variable
Power kw 4 5.5 5.5 7.5 11 15
Design pressure of jacket MPa 0.3
Pressure in the cylinder MPa -0.25
