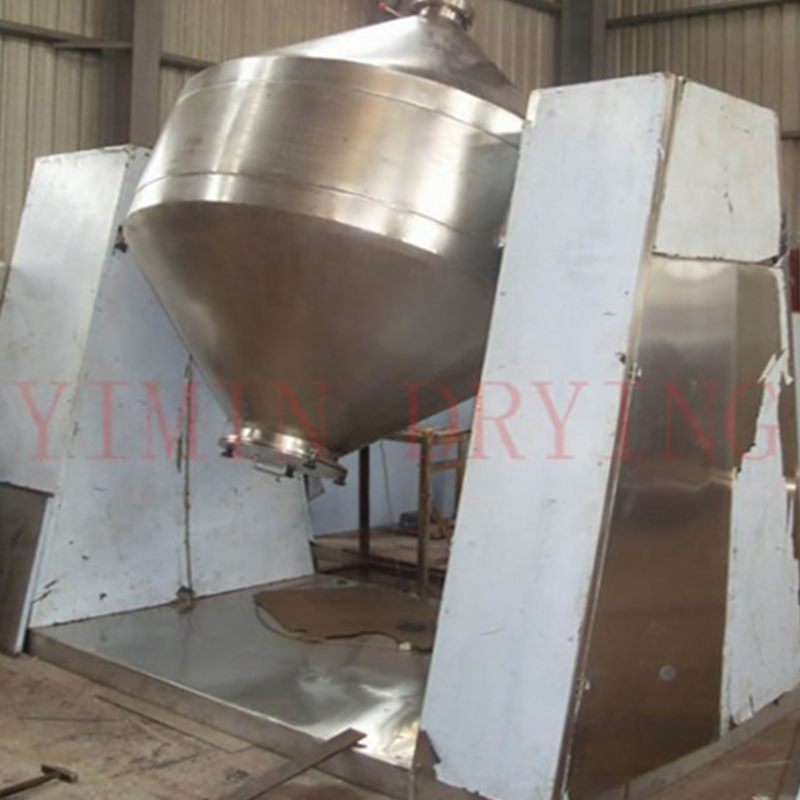

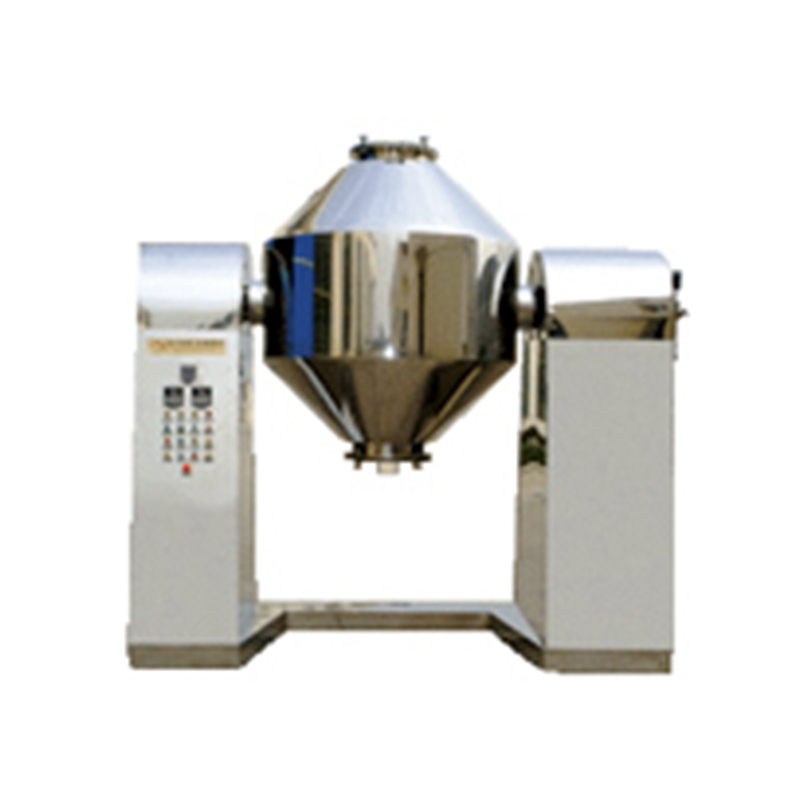

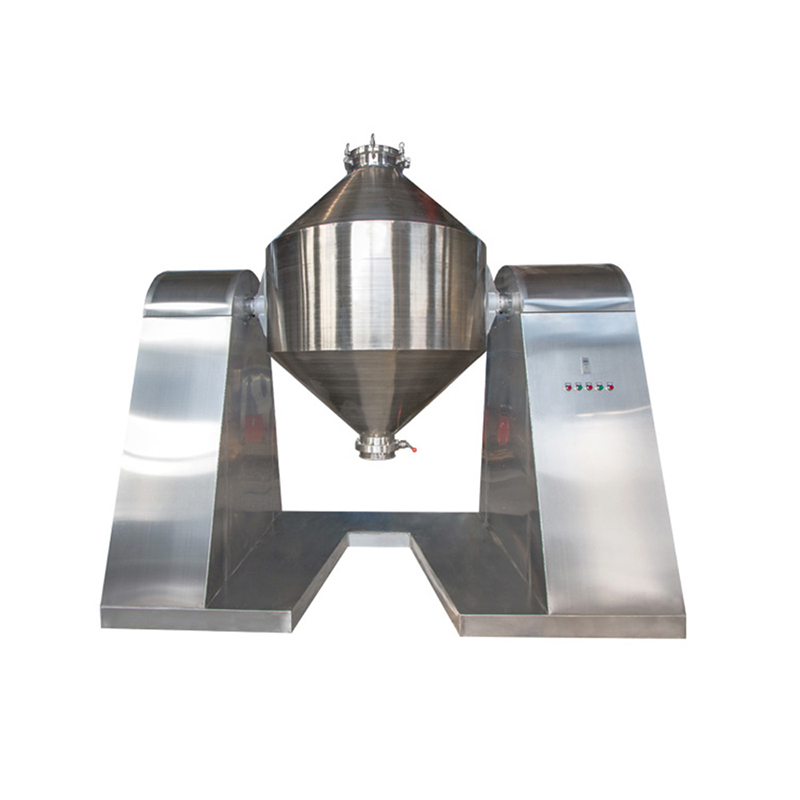

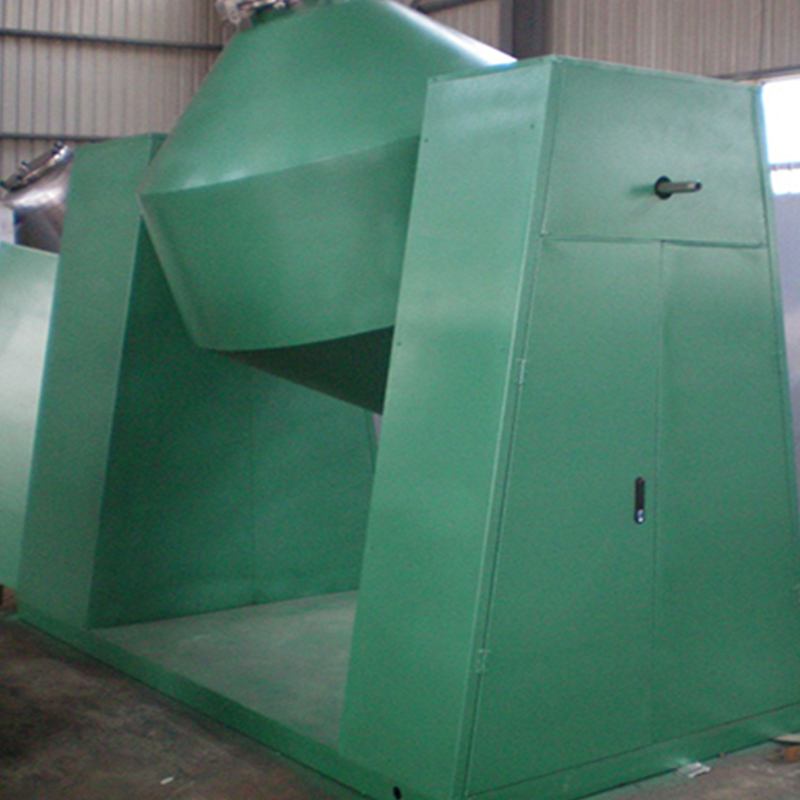

SZH Double Cone Rotary Mixer

The SZH Double Cone Rotary Mixer is a versatile solution catering to the blending needs of various industries, including pharmaceuticals, chemicals, food processing, and construction materials. Its efficient design allows for seamless mixing of both powdery and granular substances, ensuring uniformity in composition. Operating on the principle of continuous rotation within a double cone container, the machine facilitates intricate impact motions among materials, resulting in thorough blending. Whether employed via vacuum conveying or manual feeding, the SZH mixer streamlines the mixing process, offering energy efficiency, user-friendly operation, minimal labor requirements, and enhanced productivity.

  • SZH Double Cone Rotary Mixer
  • SZH Double Cone Rotary Mixer
  • SZH Double Cone Rotary Mixer
  • SZH Double Cone Rotary Mixer
  • SZH Double Cone Rotary Mixer

Type 1000 1500 2000 2500 3000
Total volume(m3 ) 1 1.5 2 2.5 3
Production capacity(kg/p) 200 300 400 500 600
Mixing time(min) 45453 45453 45453 45453 45453
Speed (rpm) 12 12 12 12 7.8
Power(kw) 4 4 7.5 7.5 7.5
Dim(mm) 2765×1500×2370 2960×1500×2480 3160×1900×3500 3386×1900×3560 4450×2200×3600
Total height(mm) 2460 2540 3590 3650 3700
Weight(kg) 810 980 1500 2150 2500

Who Are We?

Changzhou Yimin Drying Equipment Co., Ltd. is China SZH Double Cone Rotary Mixer suppliers and OEM/ODM SZH Double Cone Rotary Mixer company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.

At present, the company has more than 180 sets of processing equipment and strong technical force. It produces more than 2,000 sets of various drying, mixing, granulating, crushing, dust removal, powder screening and other equipment annually. The products have developed into eight series with more than 300 specifications and varieties, which are widely used in pharmaceutical, chemical, food, feed, mining, agricultural and sideline products, electronics, light industry and other industries. The products are distributed throughout the country and exported to the United States, Japan, Russia, Hong Kong, Taiwan and other places.

The factory also has a large test workshop with a full range of prototypes. Customers are welcome to bring materials for testing and ordering.

Changzhou Yimin Drying Equipment Co., Ltd.

Qualifications We Have Obtained

Authentic reliable quality naturally stands out and fears no comparison.

What’s News

Pay attention to our latest news and exhibitions

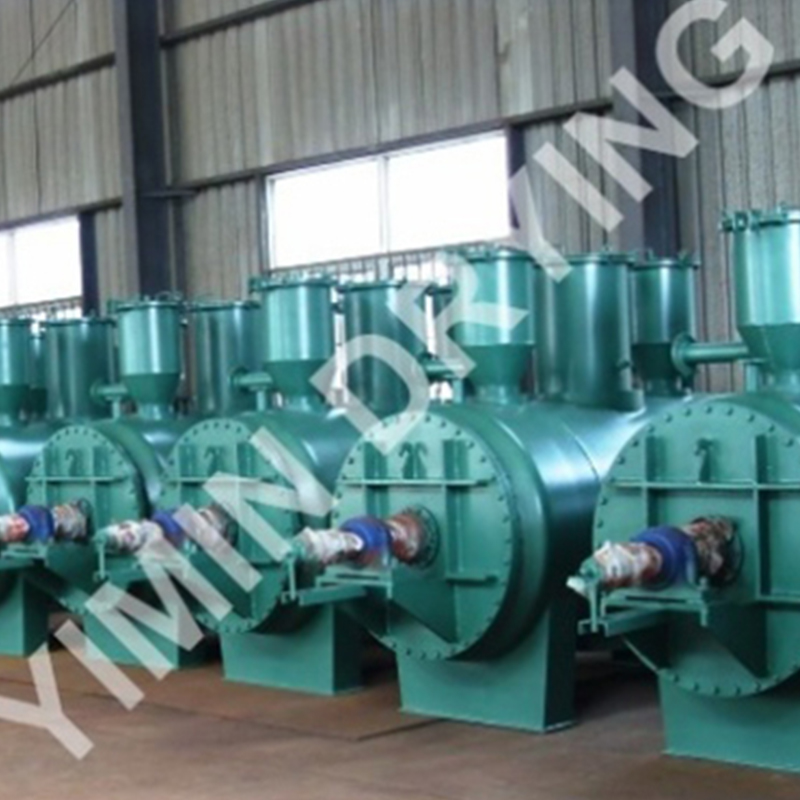

  • 4 rake dryers have been sent to Shandong
