EYH Two-dimensional Movement Mixer

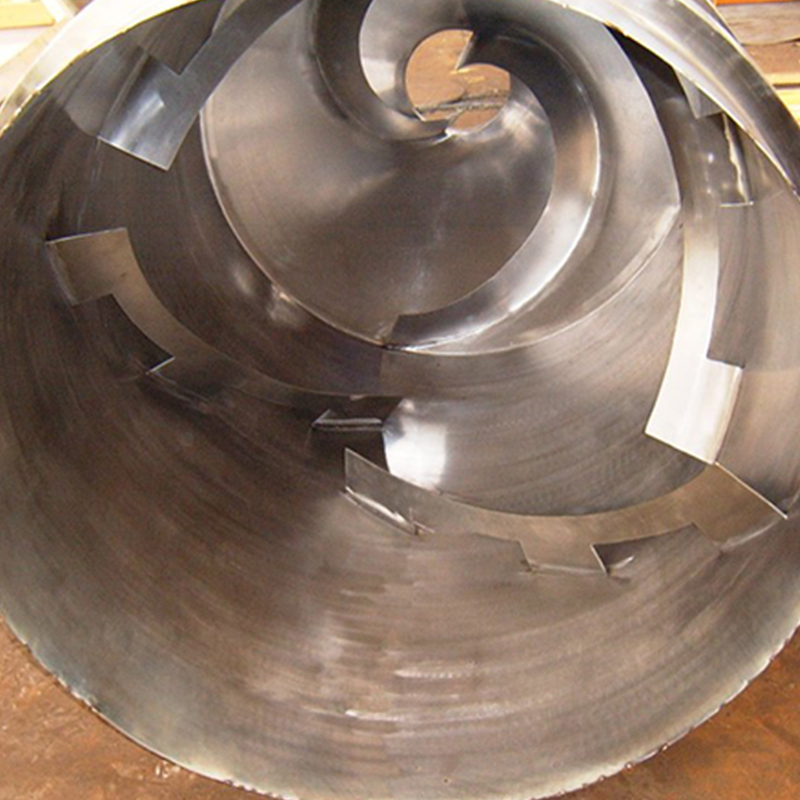

The EYH Two-Dimensional Motion Mixer stands as an indispensable asset across diverse industries including pharmaceuticals, chemicals, food processing, dyes, feeds, fertilizers, pesticides, and more. Engineered to accommodate substantial tonnages ranging from 1000L to 10000L, it excels in blending a variety of solid-phase materials efficiently. The mixer's unique design enables simultaneous rotation and swinging of the mixing barrel, ensuring thorough amalgamation of ingredients. Equipped with spiral blades for swift discharge, it boasts rapid mixing capabilities, high-volume capacity, and user-friendly operation, making it an indispensable solution for large-scale production environments.

  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer
  • EYH Two-dimensional Movement Mixer

Model Barrel volume Loading capacity   Max Loading Weight     Times of Swing &Rotation Total motor power Overall dimensions Total weight Barrel weight
EYH-150 150 75 37.5 37 1.15 800X1050X1450X1340 190 5
EYH300 300 150 75 30 1.15 900×1350×1550×1400 340 60
EYH600 600 300 150 23.6 3 1170×1640×2050×1910 1150 140
EYH800 800 400 200 19.8 3 1320× 950×2150×2000 1600 200
EYH1000 1000 500 250 19.8 3 1360×2040×2300×2170 1700 240
EYH1500 1500 750 375 16.2 4.4 1580×2400×2550×2330 2000 320
EYH2000 2000 1000 500 16.2 7.4 1740×2600×2770×2550 2600 430
EYH3000 3000 1500 750 13.8 11 1800×2900×2950×2800 3500 620
EYH4000 4000 2000 1000 12.8 13 1970×3300×3300×2950 4100 700
EYH6000 6000 3000 1500 11.2 18.5 2300×2900×3800×3100 6100 1100
EYH8000 8000 4000 2000 10.4 22 2540×4100×4050×3650 7900 1450
EYH10000 10000 5000 2500 9 30 2900×4500×4400×4020 9500 1650
EYH12000 12000 7200 3600 7 30 3050×4850×4460×4090 10000 1800
EYH-15000 15000 9000 4500 6 50 3100×5600×4700×4200 11000 2000
EYH-20000 20000 12000 6000 6 60 3600×6100×5000×4500 12000 2500
