DW Belt Dryer

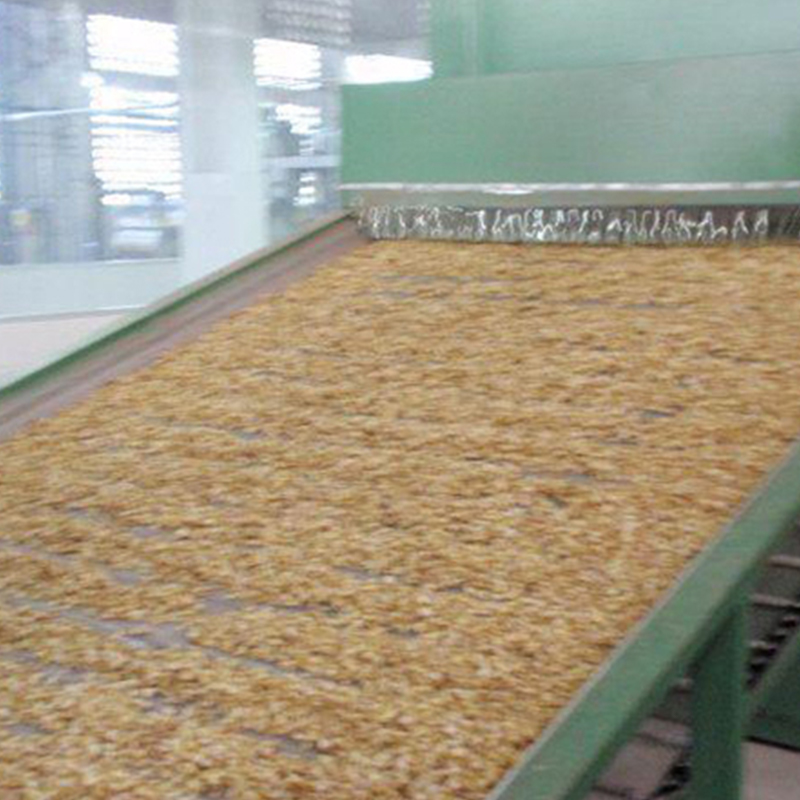

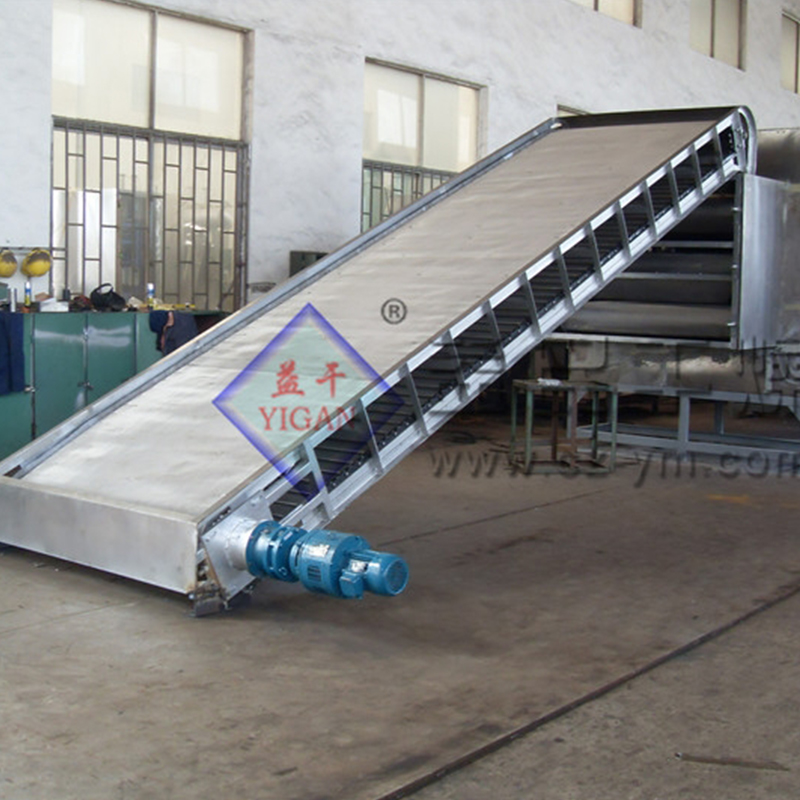

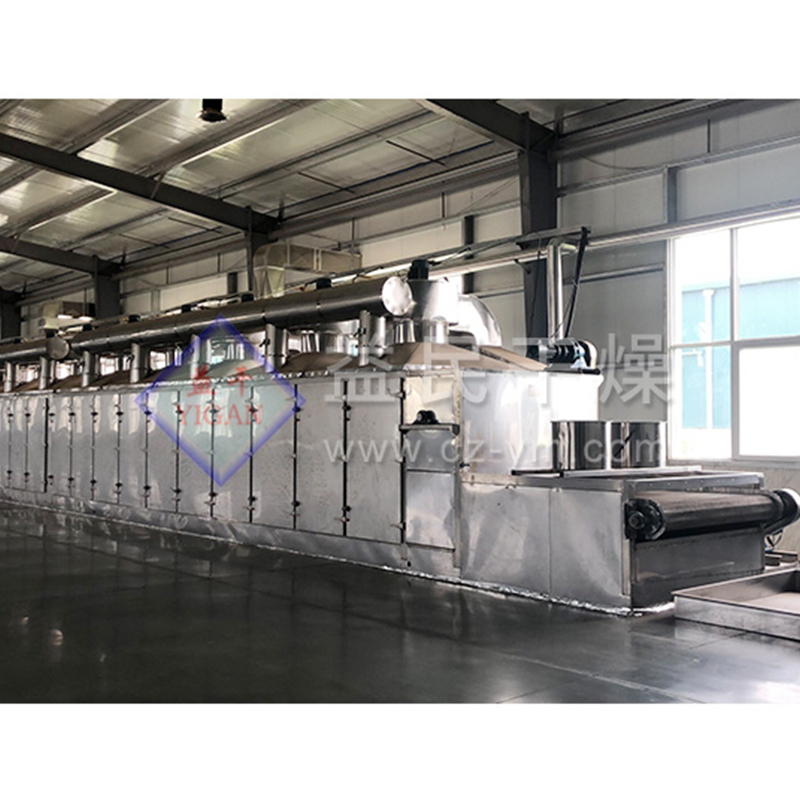

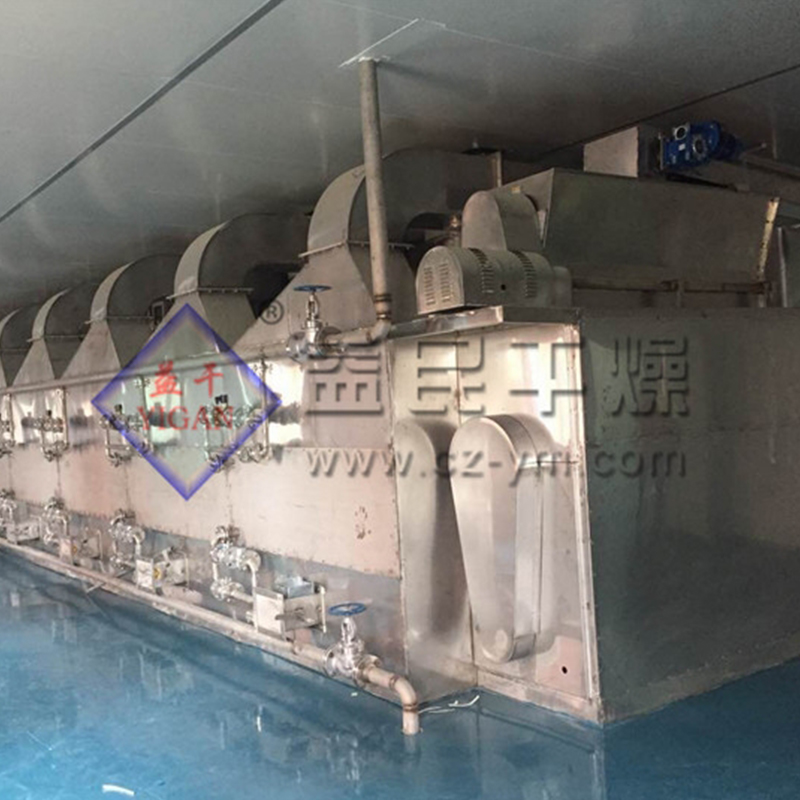

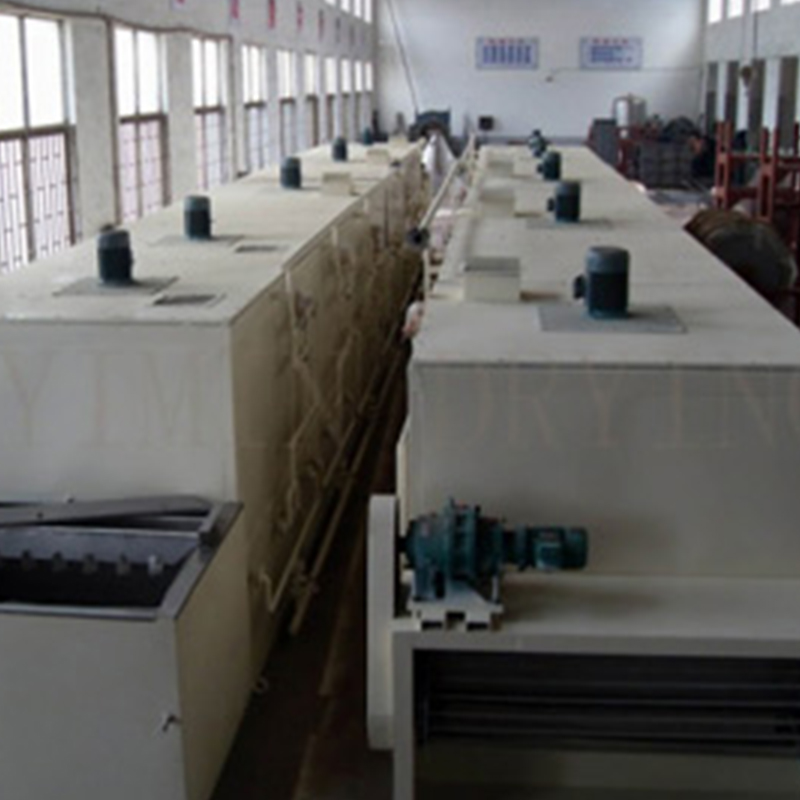

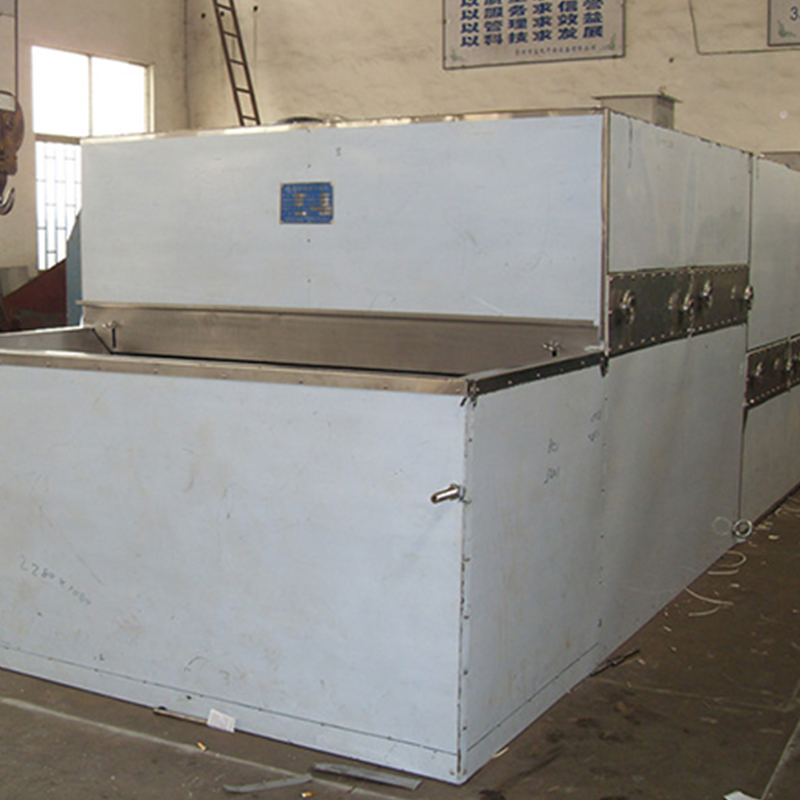

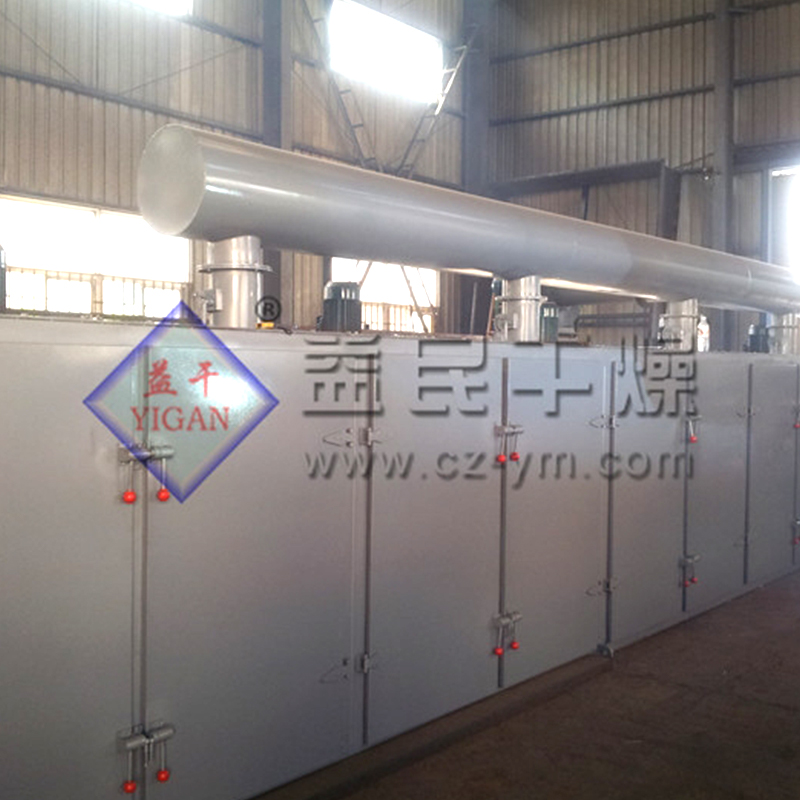

Our DW Belt Dryer is a specialized drying equipment designed to cater to various material types with distinct properties, offering tailored solutions for specific industry needs. Its versatility spans applications such as dehydrated vegetables, rice, Chinese medicine pieces, pigments, dyes, cotton and wool washing, roasted seeds and nuts, plastic particles heat treatment, magnetic powder drying, iron oxide yellow, light calcium carbonate, white carbon black, and more. This equipment's efficiency lies in its customization options, where customers collaborate with factory designers to determine technical parameters like air volume, temperature, relative humidity, and operating speed, ensuring performance and reliability. The working principle involves material evenly spread on stainless steel wire mesh, driven through drying sections by a mesh belt under constant speed. Hot air circulates, exchanging heat with materials, and is continuously heated via heat exchangers for efficient drying. The DW series stands out for its fast drying, high evaporation rates, and quality output, particularly suited for materials sensitive to high temperatures or requiring granulation.

  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer
  • DW Belt Dryer

Model DW-1.2-8 DW-1.2-10 DW-1.6-8 DW-1.6-10 DW-2-8 DW-2-10
Quantity of unit 4 5 4 5 4 5
Width of belt(m) 1.2 1.6 2
Length of dry section(m) 8 10 8 10 8 10
Thickness of raw material spreading(mm) 10-80
Operation temperature(℃) 50~120
Steam pressure(Mpa) 0.2~0.5
Steam consumption(kg/h) 120-130 150-375 150-375 170-470 180-500 225-600
Area of heat exchange(m2) 272 340 352 440 448 560
Dry time(h) 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5
Dry capacity(kg water/h) 60-160 80-220 75-220 95-250 100-260 120-300
Quantity of fan 5 6 5 6 5 6
Total equipped power inside(kw) 9.9 12.1 9.9 12.1 18.2 22.2
Total equipped power(kw) 11.4 13.6 11.4 13.6 19.7 23.7
Overall dimensions L(m) 9.77 11.77 9.77 11.77 9.77 11.77
W(m) 1.5 1.5 2.24 2.24 2.66 2.66
H(m) 2.83 2.83 2.83 2.83 3.5 3.5
Weight(kg) 4800 5780 5400 6550 6350 7800

Who Are We?

Changzhou Yimin Drying Equipment Co., Ltd. is China DW Belt Dryer suppliers and OEM/ODM DW Belt Dryer company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.

At present, the company has more than 180 sets of processing equipment and strong technical force. It produces more than 2,000 sets of various drying, mixing, granulating, crushing, dust removal, powder screening and other equipment annually. The products have developed into eight series with more than 300 specifications and varieties, which are widely used in pharmaceutical, chemical, food, feed, mining, agricultural and sideline products, electronics, light industry and other industries. The products are distributed throughout the country and exported to the United States, Japan, Russia, Hong Kong, Taiwan and other places.

The factory also has a large test workshop with a full range of prototypes. Customers are welcome to bring materials for testing and ordering.
