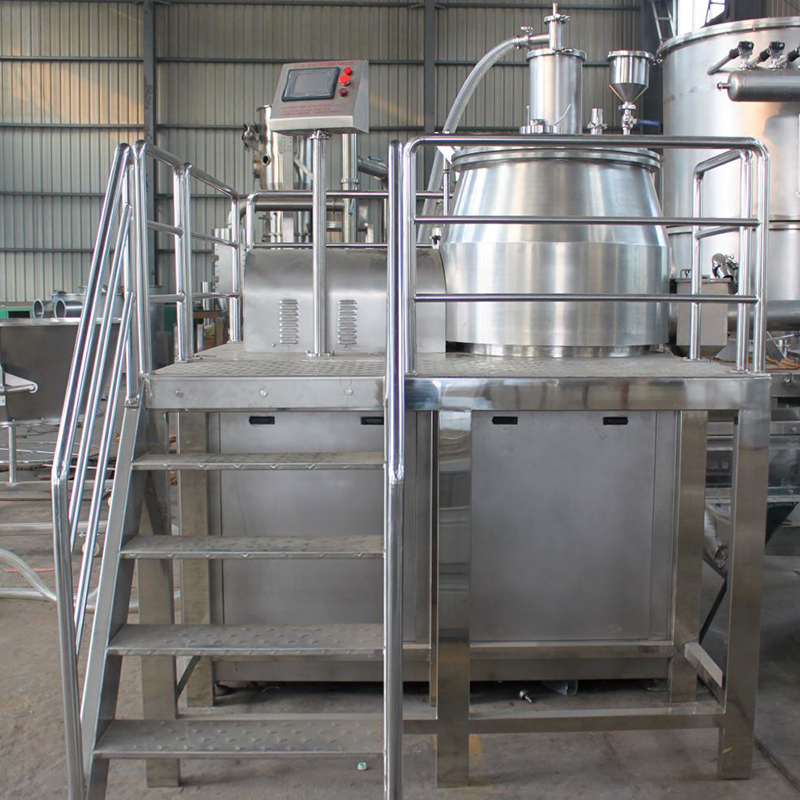

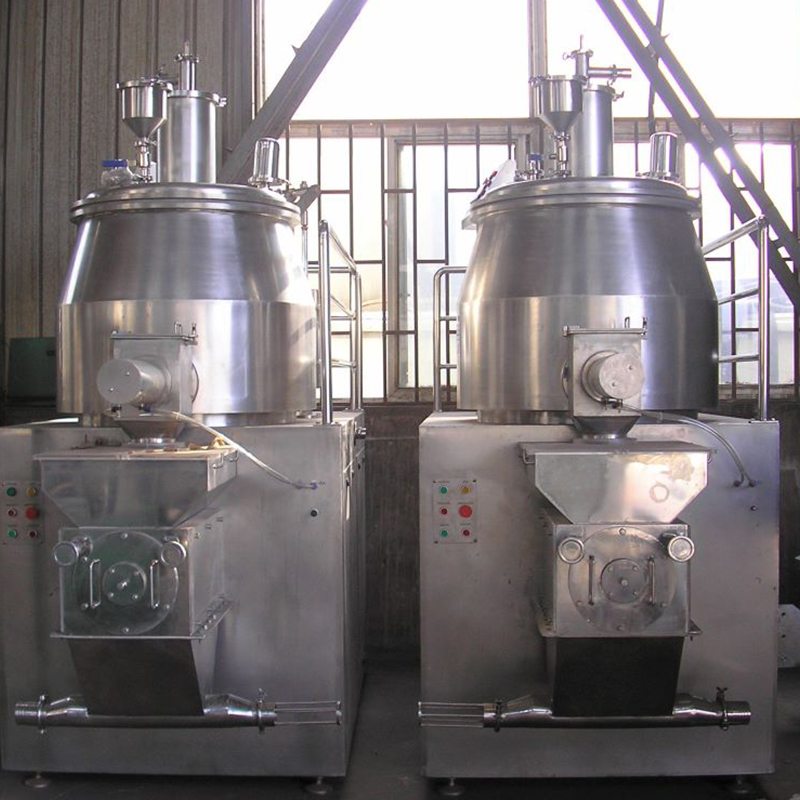

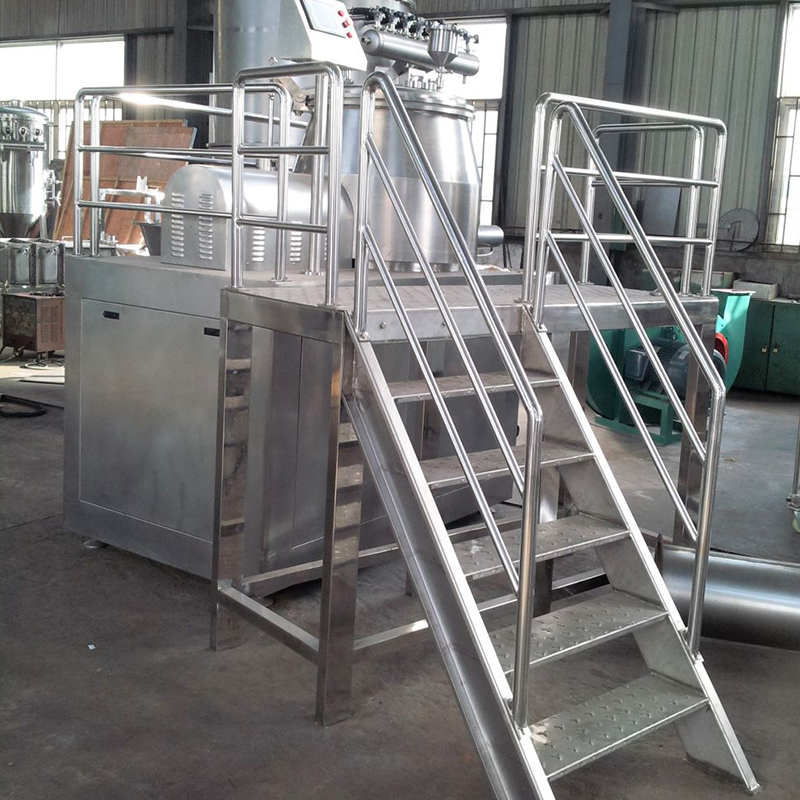

GHL High Shear Mixing Granulator

GHL High Shear Mixing Granulator is an innovative solution tailored for diverse industries including pharmaceuticals, food processing, and chemicals. Designed to streamline the granulation process, this machine boasts a horizontal cylindrical (conical) structure, optimizing efficiency and adhering to stringent "GMP" standards with its enclosed operation. With no internal dead space, it ensures thorough mixing while significantly reducing adhesive usage by 25% and shortening drying times, thus enhancing cost-effectiveness. Notably, its rapid granulation cycle, completing dry mixing in just 2 minutes and granulation in 1-4 minutes per batch, achieves an impressive 4-5 times higher efficiency compared to traditional methods. Moreover, safety remains paramount, with comprehensive safety measures integrated throughout operation. By delivering uniform, high-quality granules with exceptional fluidity, this granulator provides an indispensable resource for optimizing the tablet manufacturing process, driving productivity and quality to new heights.

  • GHL High Shear Mixing Granulator
  • GHL High Shear Mixing Granulator
  • GHL High Shear Mixing Granulator
  • GHL High Shear Mixing Granulator
  • GHL High Shear Mixing Granulator
  • GHL High Shear Mixing Granulator

Name

GHL-50

GHL-150

GHL-200

GHL-250

GHL-300

GHL-400

GHL-600

Capacity(L)

50

150

200

250

300

400

600

Output(kg/batch)

15

50

80

100

130

200

280

Mix speed(r.p.m)

200/400

180/270

180/270

180/270

140/220

106/155

80/120

Mixer power(kW)

4/5.5

6.5/8

9/11

9/11

13/16

18.5/22

22/30

Cutting speed(r.p.m)

1500/3000

Cutting power(kW)

1.3/1.8

2.4/3

4.5/5.5

4.5/5.5

4.5/5.5

6.5/8

9/11

Compressed air consumption

0.6

0.9

0.9

0.9

1.1

1.5

1.8

Who Are We?

Changzhou Yimin Drying Equipment Co., Ltd. is China GHL High Shear Mixing Granulator suppliers and OEM/ODM GHL High Shear Mixing Granulator company, located in the birthplace of China's drying equipment industry - Jiaoxi Industrial Park, Zhenglu Town, Changzhou City. It is adjacent to the Beijing-Shanghai Expressway, Shanghai-Nanjing Railway, and 5 kilometers from the Hengshan Crossing of the Shanghai-Nanjing Expressway. It is a key backbone enterprise in China's drying industry and pharmaceutical machinery. The company currently covers an area of ​​33,000 square meters and a building area of ​​18,000 square meters. The company has modern large-scale production workshops and equipment, fixed assets of more than 80 million yuan, and more than 120 employees. The founder of the company, Mr. Fan Yiming, has been committed to the research, production and operation of drying equipment for more than 20 years. At the same time, he has also brought together a group of high-quality talents integrating scientific research, design, production and service, and has long-term horizontal cooperation with relevant colleges and universities to continuously update and develop products.

At present, the company has more than 180 sets of processing equipment and strong technical force. It produces more than 2,000 sets of various drying, mixing, granulating, crushing, dust removal, powder screening and other equipment annually. The products have developed into eight series with more than 300 specifications and varieties, which are widely used in pharmaceutical, chemical, food, feed, mining, agricultural and sideline products, electronics, light industry and other industries. The products are distributed throughout the country and exported to the United States, Japan, Russia, Hong Kong, Taiwan and other places.

The factory also has a large test workshop with a full range of prototypes. Customers are welcome to bring materials for testing and ordering.
