Home / Products / Granulator Equipment / Dry Granulator / GKL Dry Granulator(Compactor)

GKL Dry Granulator(Compactor)

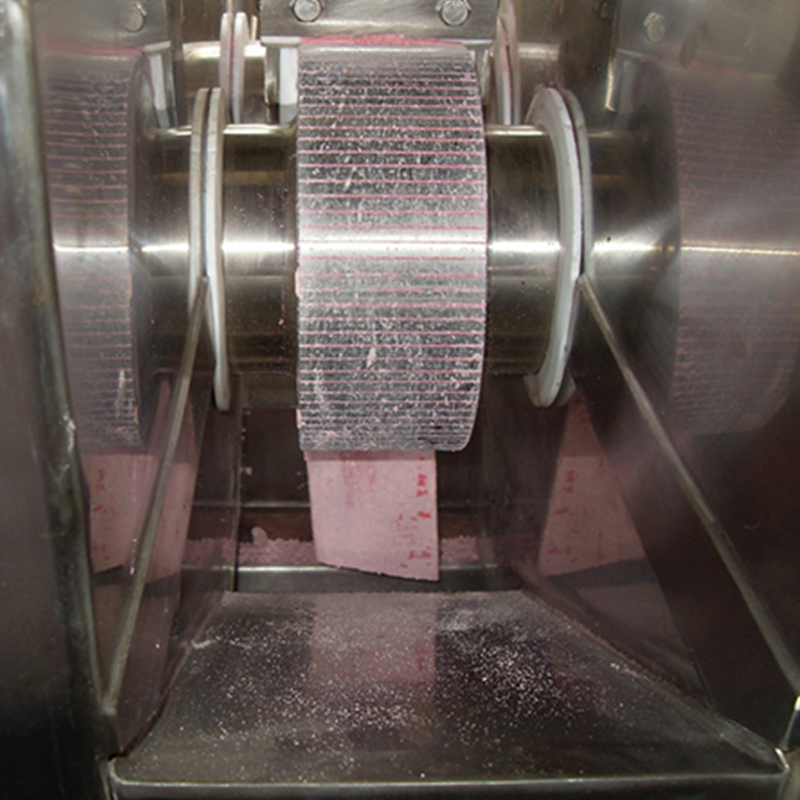

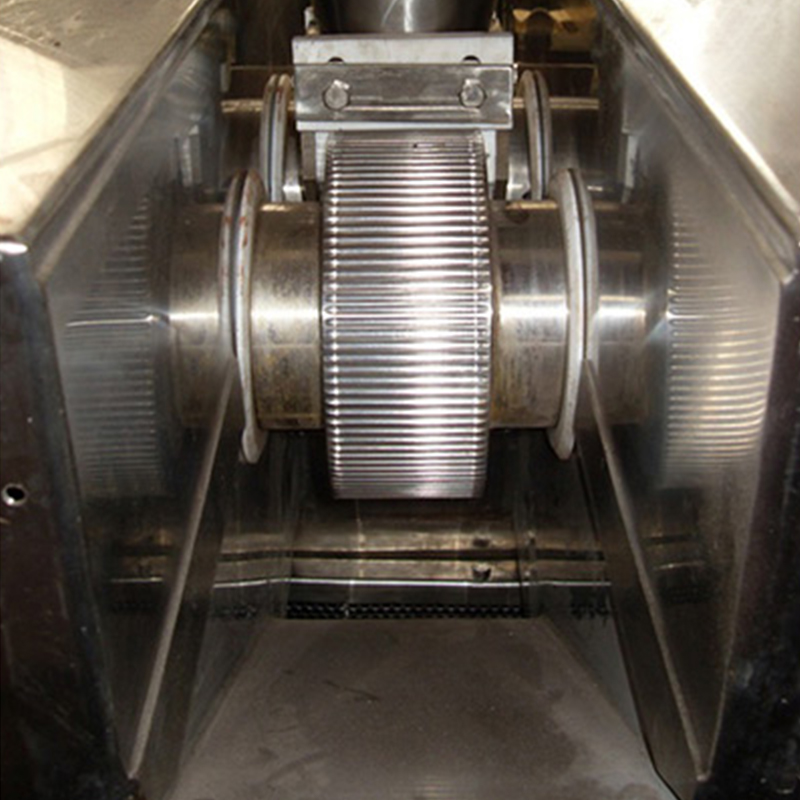

The GKL Dry Granulator is a cutting-edge solution designed for diverse industrial applications, including pharmaceutical, food, plastics, and chemical industries. With a focus on efficiency and quality, this equipment boasts several key features. It produces dry powder particles with uniform density, disintegration, and a high granulation rate. Its specialized feeding structure ensures effective material input, while the water-cooled rollers prevent material adherence, enhancing operational reliability. Unlike traditional methods, the GKL requires no wetting agents or secondary heating, reducing costs and process complexity. Further, its advanced electro-hydraulic system ensures simple operation and high automation levels, while a sealed design meets stringent pharmaceutical hygiene standards. The granulator excels particularly in handling materials unsuitable for wet methods, offering a versatile solution for converting powders into granules.

  • GKL Dry Granulator(Compactor)
  • GKL Dry Granulator(Compactor)
  • GKL Dry Granulator(Compactor)
  • GKL Dry Granulator(Compactor)
  • GKL Dry Granulator(Compactor)
  • GKL Dry Granulator(Compactor)

Type GK-40 GK-80 GK-120 GK-160
Production capacity(kg/h) 5-15 20-60 30-100 80~250
Fineness of granules(mm) 0.3-1.5 0.3-1.5 0.3-1.5
Total Power(KW) 2.8 7.15 14 21.2
Working pressure(T) 5 10 10 15
Overall dimensions (L"W'H)(mm) 750*700*1300 1540*900*2200 1500*925*1980 1800*1500*2400
Weight(kg) 500kgs 2300 3500 4100kgs
