Bromine Chloride Hydantoin Flash Dryer

Bromine, chlorine and hydroxyethyl is a special disinfectant used for industrial water treatment and mineral (hot spring) bath disinfection. Indoor and outdoor swimming pool disinfection only requires 1~2ppm to achieve the desired effect. It can also be used for various water treatments, toilet disinfection and deodorization, disinfection and bleaching, and for disinfection and sterilization of flowers and seeds in agriculture, aquaculture, and fruit preservation. It can also be made into various packaging tablets, granules, blocks, and powders.

Product Introduction:

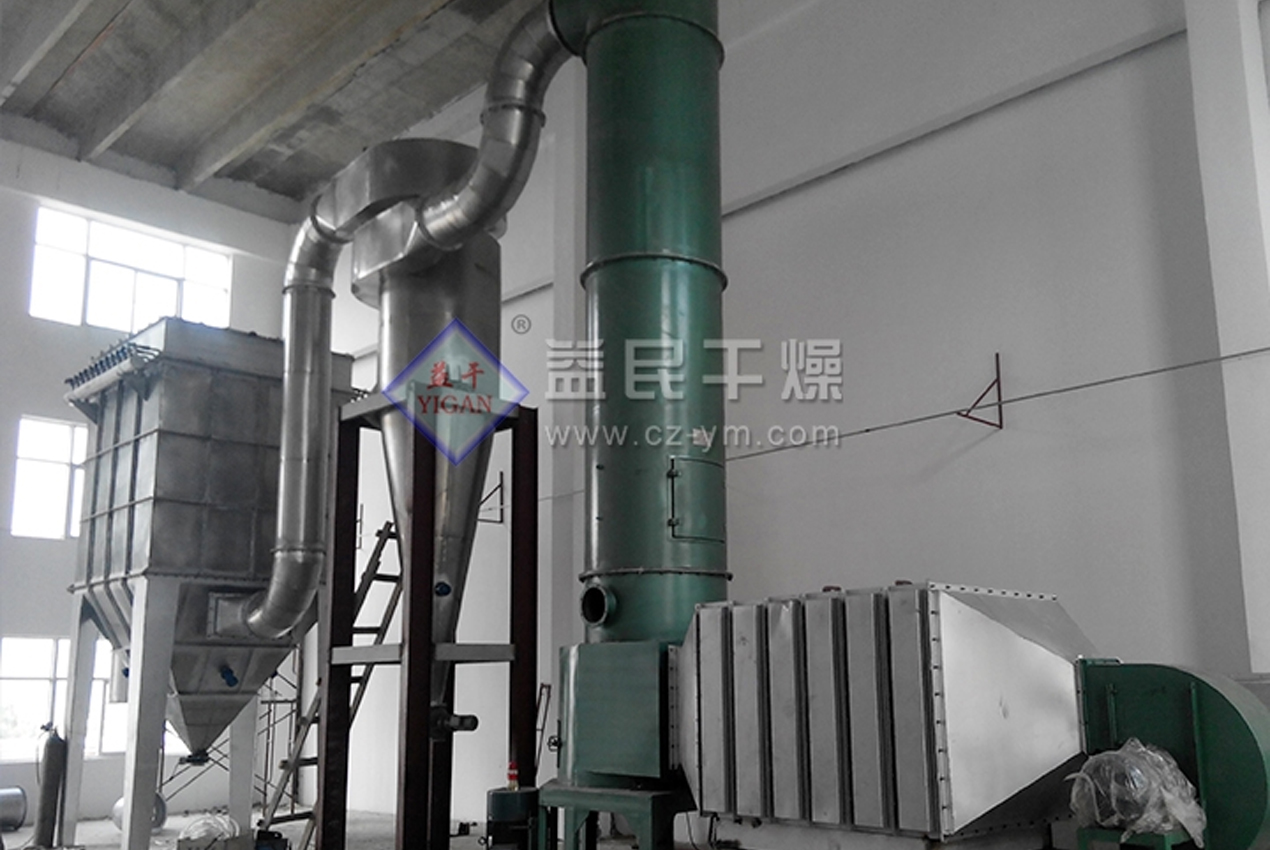

The bromine, chlorine and hydroxyethyl flash dryer use wind as a wet and heat carrier and a fan as a power source to achieve mass and heat exchange in the drying process, so that the moisture in bromine, chlorine, and hydroxyethyl undergoes a phase change, and the bromine, chlorine and hydroxyethyl separate from the moisture, that is, drying. Drying generally uses the natural wind. After passing through the air filter, the natural wind is blown into the steam heat exchanger, coal-fired, oil-fired or gas-fired hot air furnace by the fan to be heated. The heated hot air is then distributed into a uniform cyclone with a certain flow rate and direction through the hot air distributor of the flash evaporation host. The cyclone contacts and collides with the bromine, chlorine and hydantoin wet materials added by the spiral feeder, and a series of physical changes such as mass heat exchange and separation begin, so that the bromine, chlorine and hydantoin are separated from the contained moisture and the drying is completed.

Product features:
1. A variety of feeding devices are available for selection, and the feeding is continuous and stable without bridging.
2. A special cooling device is set at the bottom of the dryer to prevent the material from deteriorating in the high-temperature area at the bottom.
3. Special air pressure sealing devices and bearing cooling devices effectively extend the service life of the transmission part.
4. A special air distribution device reduces the equipment resistance and makes the wind speed in the tower tend to balance.
5. The drying chamber is equipped with a grading ring and a swirling sheet, and the material fineness and final moisture content are adjustable and controllable.
6. The circumferential air velocity in the drying chamber is high, and the material residence time is short, which effectively prevents the material from sticking to the wall and the heat-sensitive material from deteriorating.
